Extremely adaptable and with a high load-bearing capacity

PERI UP Flex 外装修脚手架

高适应性和承载能力。

PERI UP Flex 可搭建极高承载能力的外装修脚手架。踏脚板直接安装在水平连接杆上,系统在水平方向上以25厘米为模数;垂直支撑方向以50厘米为间距布置连接节点,连接其他的系统组件。踏脚板的防上翻设计、水平连接杆上的重力锁都加速了安装过程,水平连接杆可以在安全平台上提前组装。

技术细节

  • 系统常规应用宽度 75 厘米或 100 厘米。
  • 系统宽度= 75 厘米 荷载等级 1 至 4 (0,75 kN/m² – 3,00 kN/m²)。
  • 系统宽度 = 100 厘米 荷载等级 1 bis 6 (0,75 kN/m² – 6,00 kN/m²)。
  • 欧洲标准: EN 12810 和 EN 12811。
  • 系统组件统一以25 厘米 或50 厘米为模数。
  • 脚手架立杆间距: 50 厘米, 75 厘米, 100 厘米, 125 厘米, 150 厘米, 200 厘米, 250 厘米, 300 厘米。






  • 适应能力强

    以25厘米为系统模数,灵活的适应复杂的立面设计。



  • 踏脚板平面覆盖无余

    平台所有区域均被踏脚板覆盖,无绊脚位置。



  • 极高的承载能力

    视结构而定,最高可达荷载等级6.

产品图片

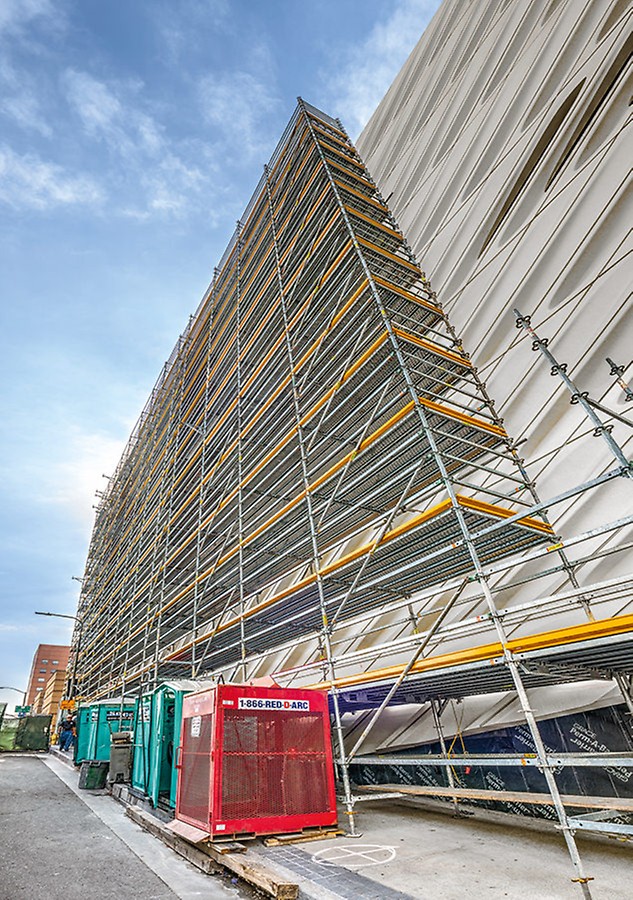

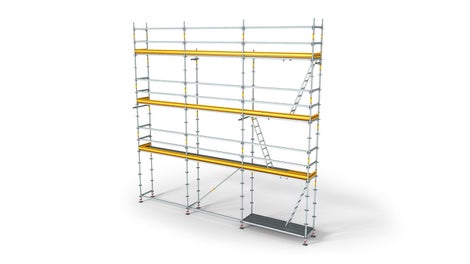

  • Extremely adaptable and with a high load-bearing capacity
    高灵活性以及高承载能力。
  • The scaffolding width can be choosen freely selectable and can be adapted to met a wide range of requirements.
    框架的宽度几乎可以任意选择,可适应多样化的要求。

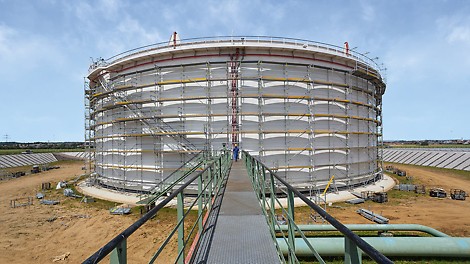

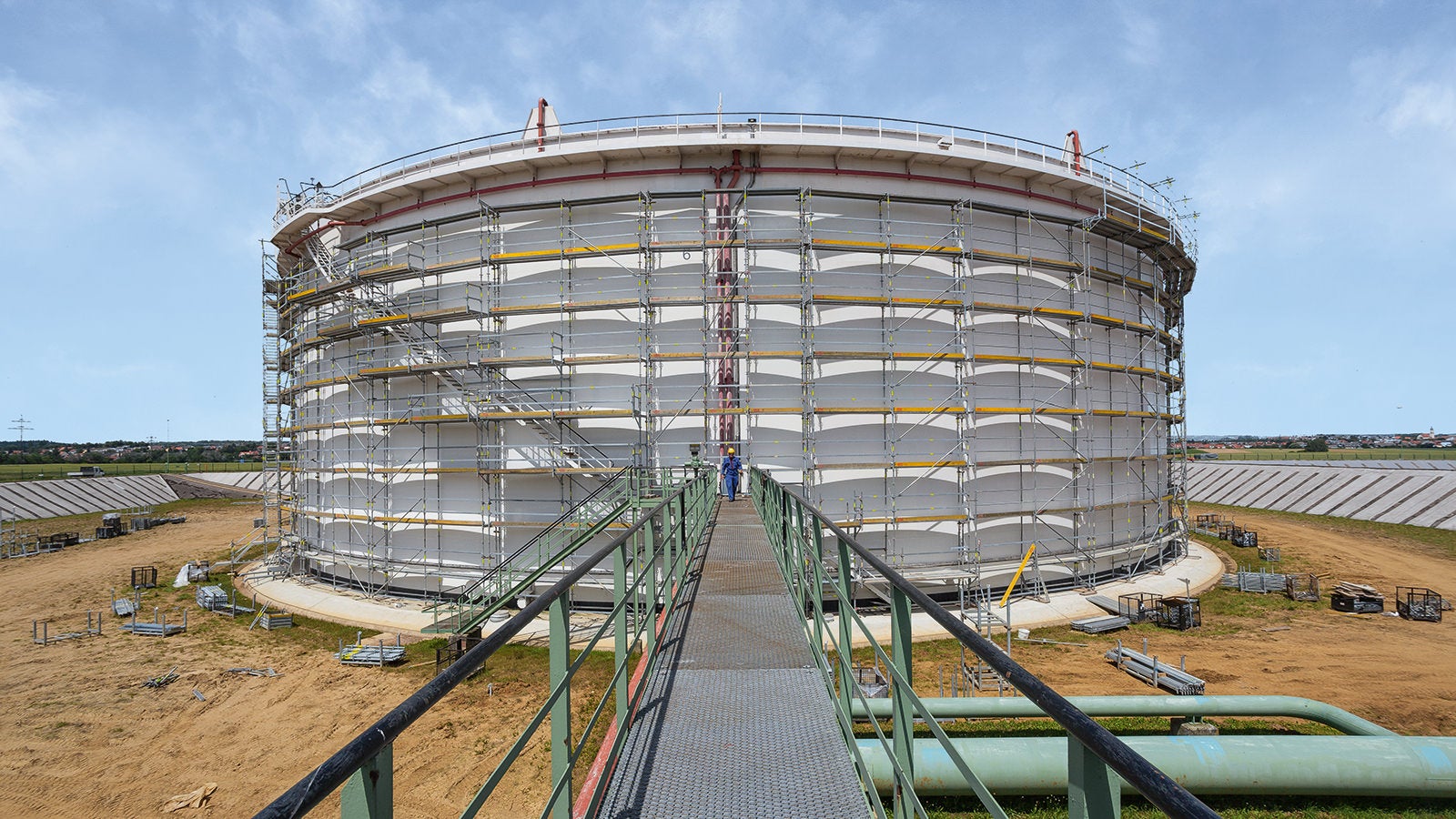

  • PERI UP Modular Working Scaffold: Circular structures can also be easily scaffolded with PERI UP.
    即使是圆形建筑,使用PERI UP Flex也很容易架设脚手架。

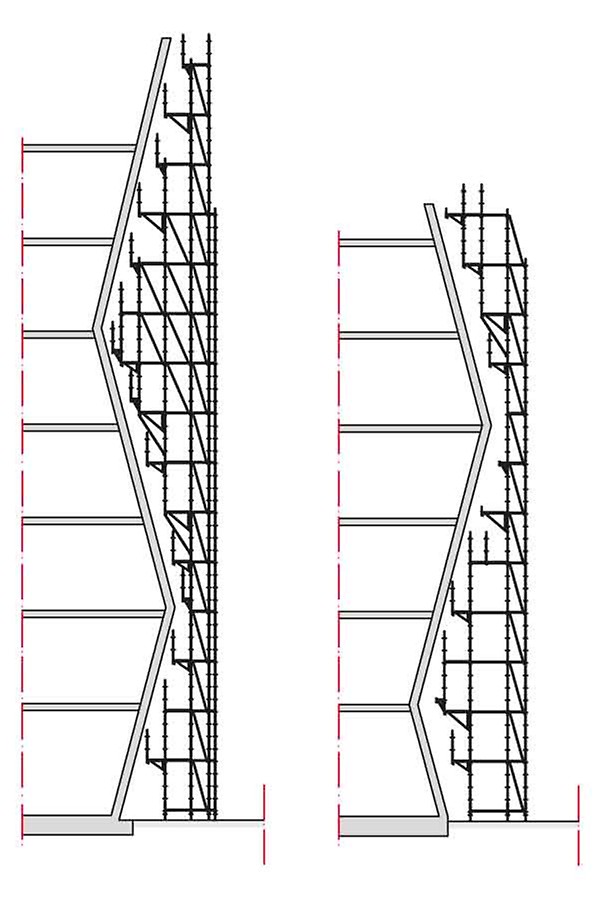

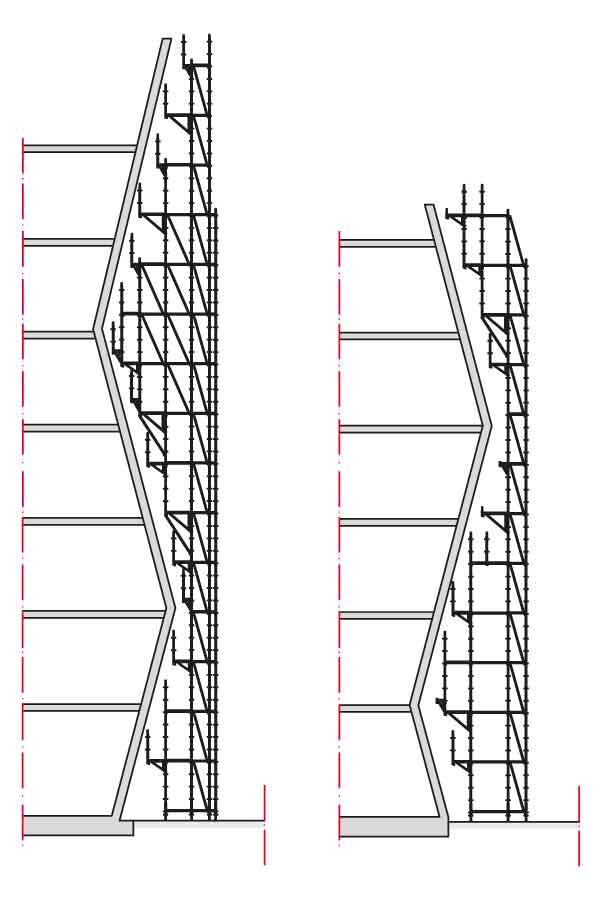

  • Adjustments to the building shape are carried out in a uniform grid arrangement of 25 cm which provides a high level of flexibility for complex facade scaffolding
    系统以25厘米为模数,适合于不同构造的建筑,在为复杂造型的建筑施工时显得十分灵活。

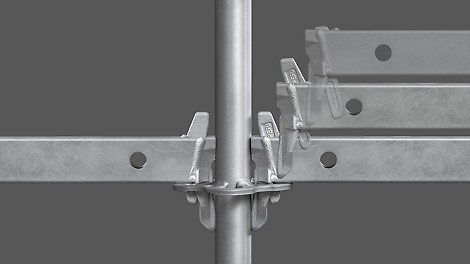

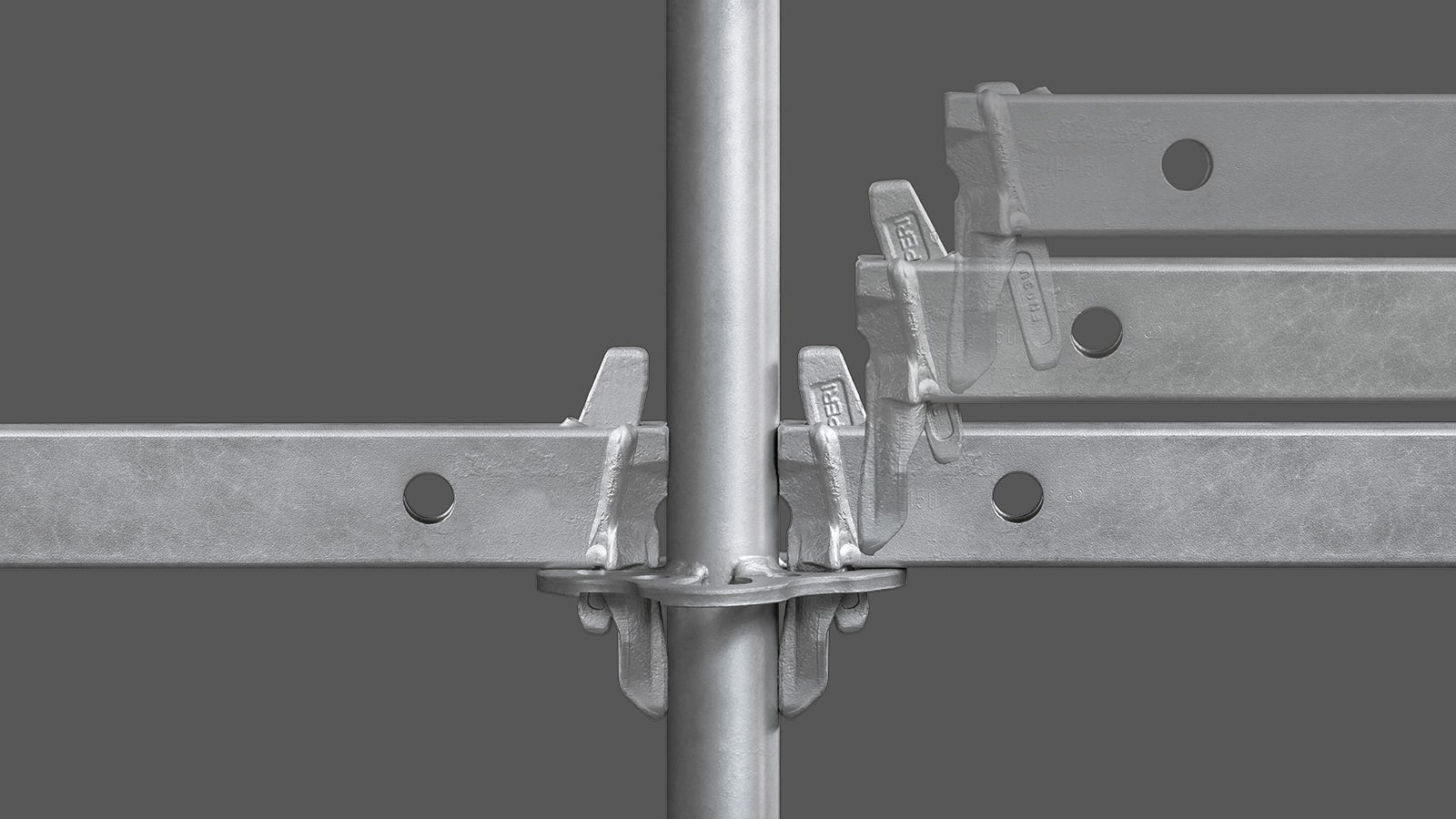

  • During erection, the wedge of the waler falls into the Rosett joints due to its own gravity and locks automatically.
    在组装过程中,楔形的卡扣利用重力落入盘口节点中,并自锁。

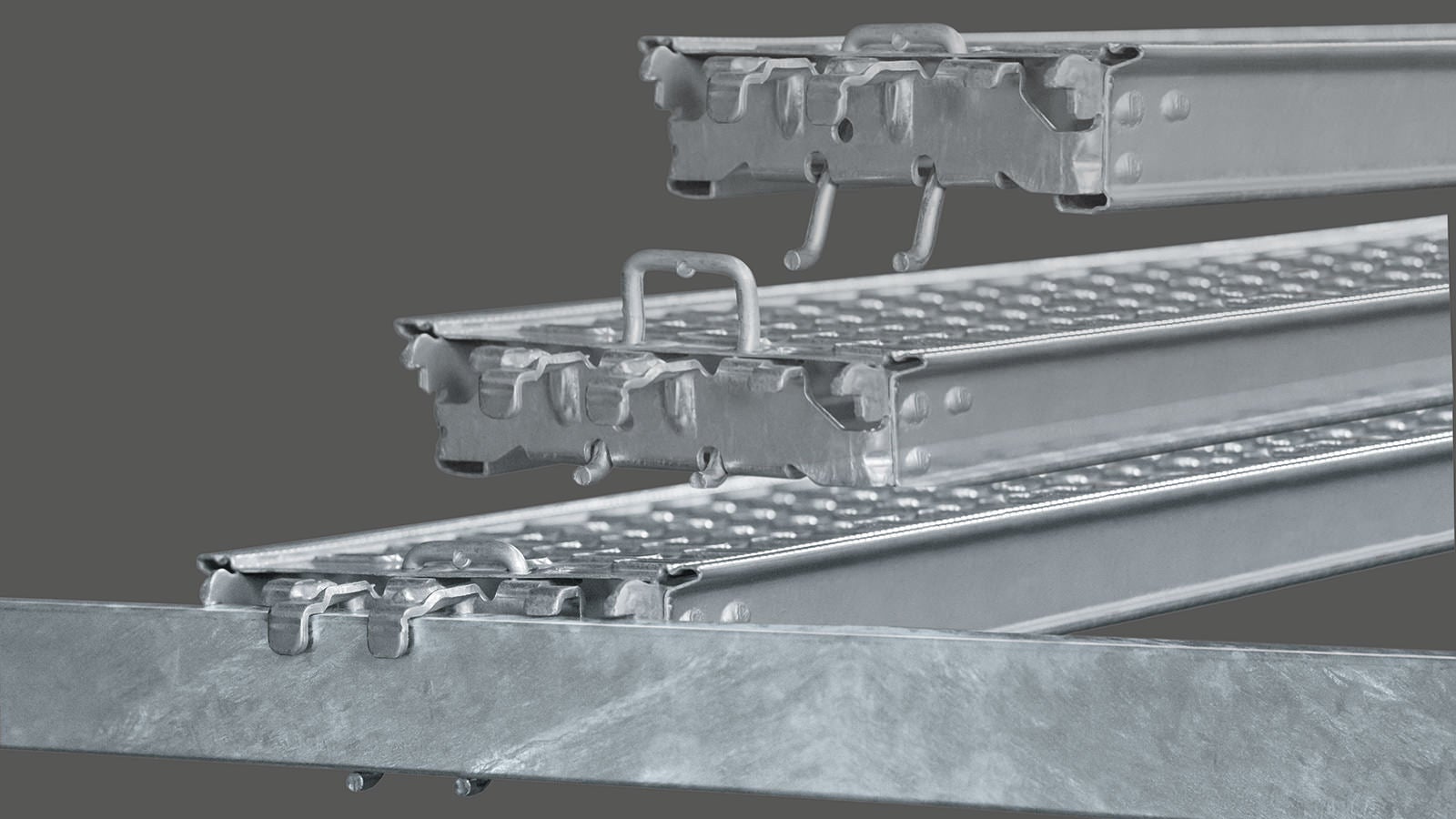

  • The decking is mounted directly on the steel ledgers and held securely in position without requiring any additional components.
    安装过程中,踏脚板自锁在钢框上,不需要额外的措施。
