奥迪隧道
德国, Ingolstadt
新建在慕尼黑与纽伦堡之间的ICE高铁线中的一段穿过奥迪汽车制造厂厂区车间的地下,因此将该隧道命名为奥迪隧道。因为施工过程带来的震动会给汽车生产设备造成影响,因此施工团队使用盖挖法代替矿山法施工。在隧道外部的挡土墙和底板施工完成后,在挡土墙一侧使用单侧模板完成隧道侧壁的浇筑。
地点
项目类别
交通项目
项目实现
工地快照、项目记录

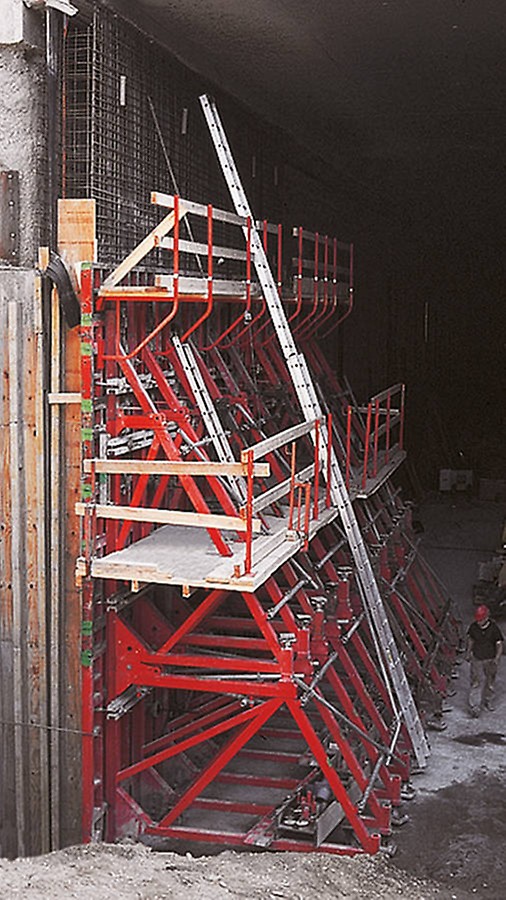

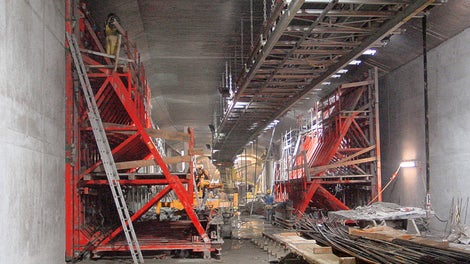

在使用单侧模板,面向已经存在的墙体浇筑混凝土时,需要将整个模板平面上的现浇混凝土的侧向压力通过相应的拉杆系统与单侧支架传递给基础结构。为了提高单侧支架的承载能力(2x250kN),每个SB支架使用两个DW 26拉杆。

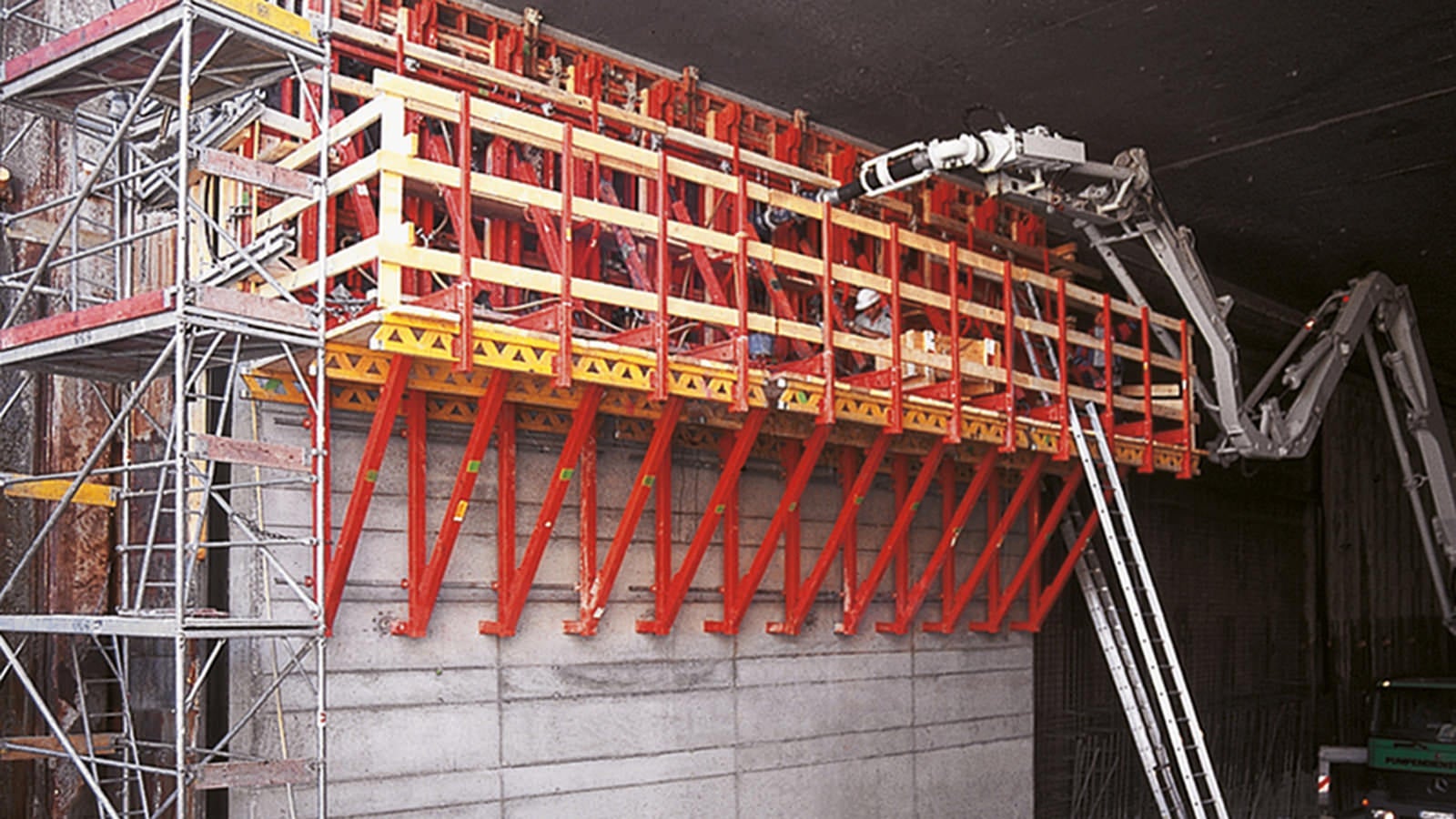

南侧墙体高于标准墙高度,可达9.60米,高度方向上分段浇筑: 首层浇筑6.55米高,使用SB单侧支架与TRIO模板, 第二次浇筑结合TRIO模板与SKS180单面爬架系统。
南侧墙体高于标准墙高度,可达9.60米,高度方向上分段浇筑: 首层浇筑6.55米高,使用SB单侧支架与TRIO模板, 第二次浇筑结合TRIO模板与SKS180单面爬架系统。

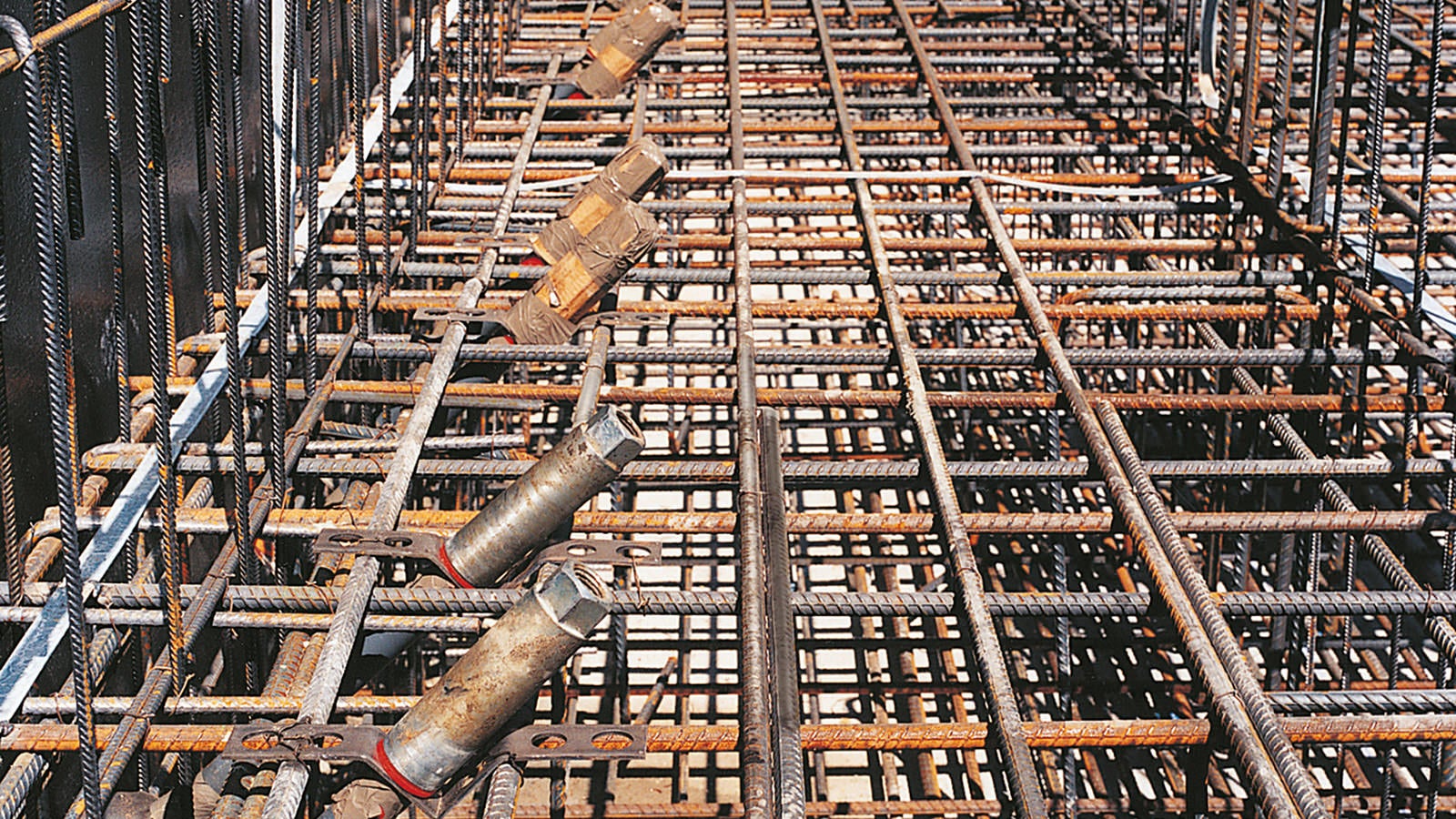

派利V型拉杆支架保证了单侧支架能够快速固定安装。

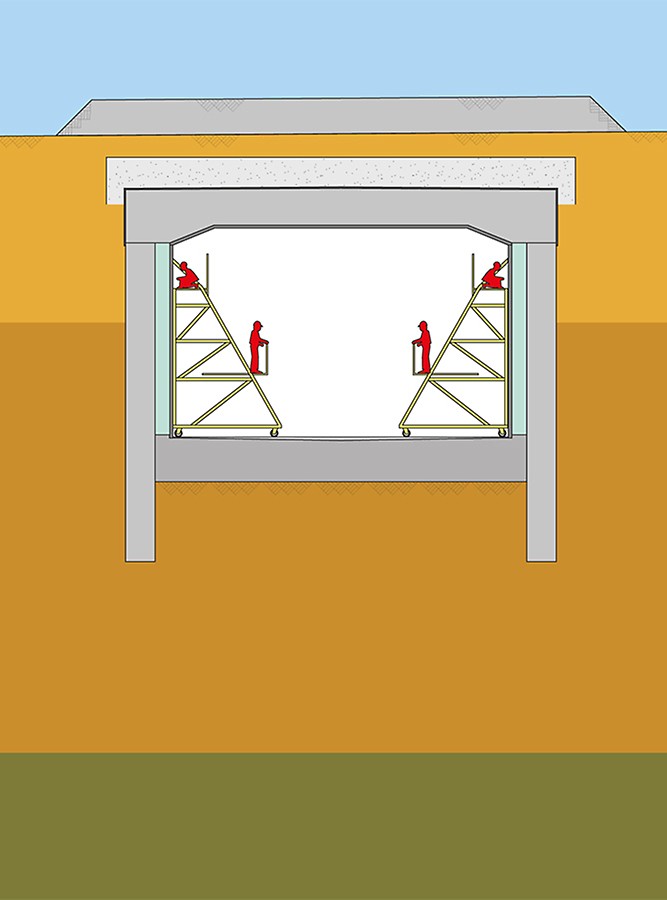

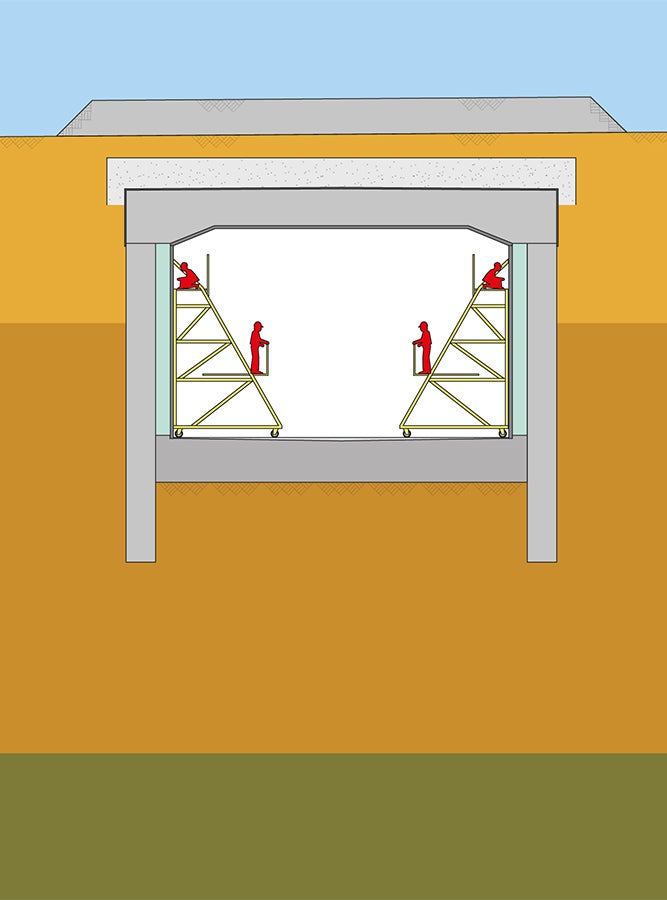

在地下连续墙施工完成后,浇筑其上方的隧道顶板;随后采用明挖法在隧道入口处开始施工。

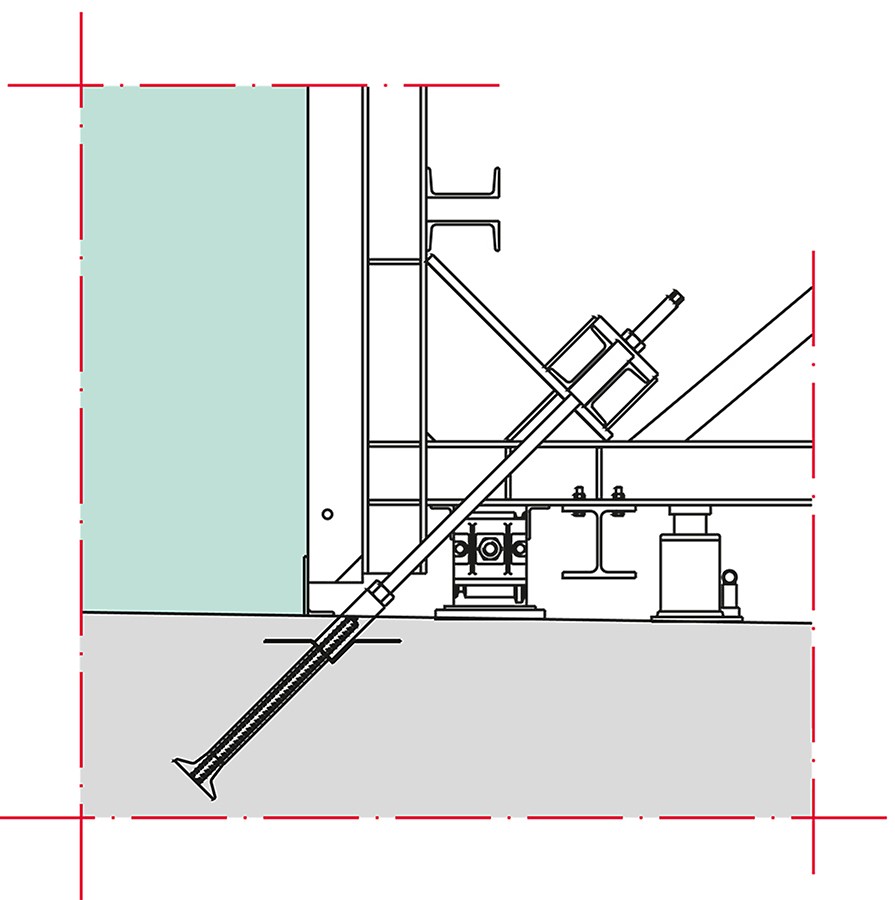

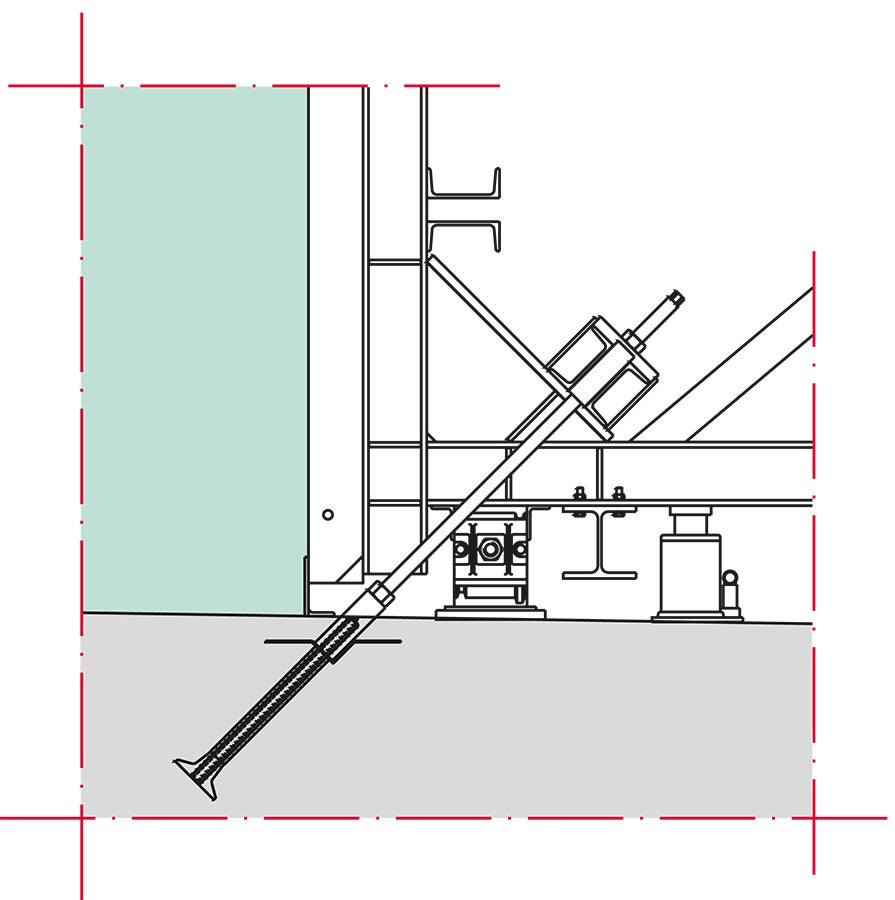

派利侧向支架锚固件与V型拉杆支架细部。

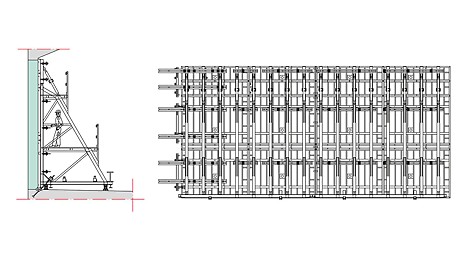

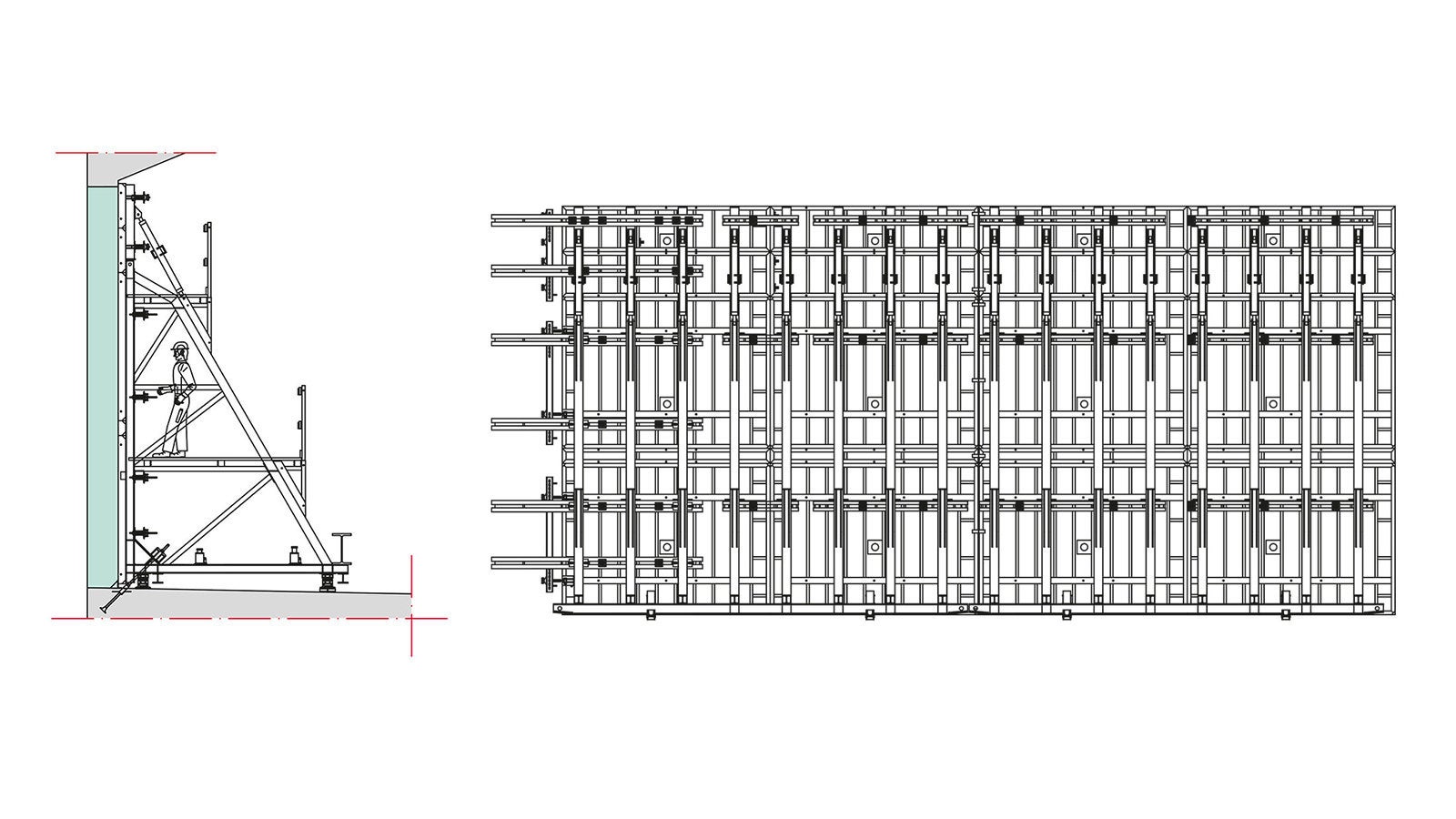

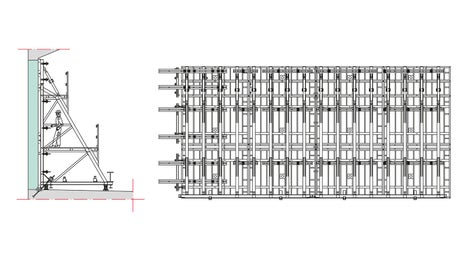

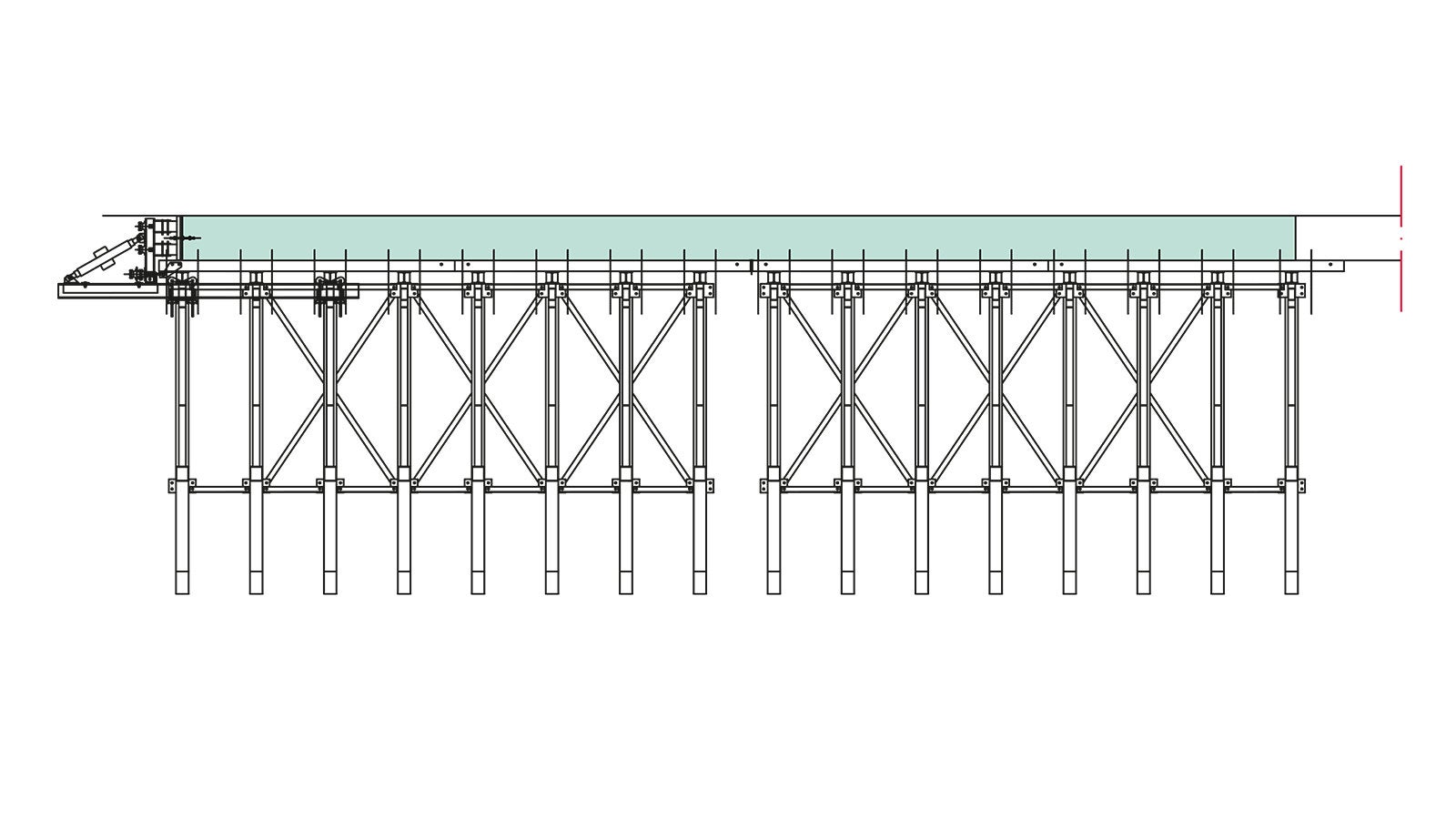

TRIO墙体模板连成一体的立面图(右)与单侧支架与钢梁分布截面图(左)。

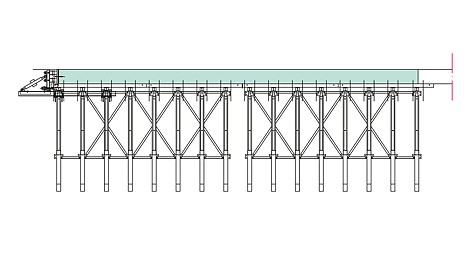

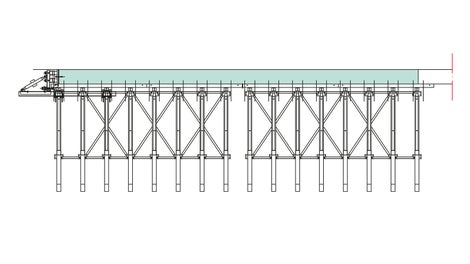

TRIO墙体模板连成一体的立面图与单侧支架与钢梁分布截面图。
![PERI brace frame structure to transfer the loads during single-sided concreting with ties of the DW 26 system, at the jobsite for the Audi tunnel in Ingolstadt.](https://cdn.peri.cloud/.imaging/mWide/dam/3111b814-dff9-48df-b012-e4827d43c258/11448/%E5%BE%B7%E5%9B%BD%EF%BC%8C%E5%A5%A5%E8%BF%AA%E9%9A%A7%E9%81%93.jpg)
![德国,奥迪隧道 PERI brace frame structure to transfer the loads during single-sided concreting with ties of the DW 26 system, at the jobsite for the Audi tunnel in Ingolstadt.](https://cdn.peri.cloud/.imaging/mWide/dam/3111b814-dff9-48df-b012-e4827d43c258/11448/%E5%BE%B7%E5%9B%BD%EF%BC%8C%E5%A5%A5%E8%BF%AA%E9%9A%A7%E9%81%93.jpg)
![Brace frames and TRIO panel formwork elements used at the jobsite for the Audi tunnel in Ingolstadt.](https://cdn.peri.cloud/.imaging/lPortrait/dam/952ec2fb-f407-485d-9cfd-58de422e8f79/11431/%E5%BE%B7%E5%9B%BD%EF%BC%8C%E5%A5%A5%E8%BF%AA%E9%9A%A7%E9%81%93.jpg)
![德国,奥迪隧道 Brace frames and TRIO panel formwork elements used at the jobsite for the Audi tunnel in Ingolstadt.](https://cdn.peri.cloud/.imaging/lPortrait/dam/952ec2fb-f407-485d-9cfd-58de422e8f79/11431/%E5%BE%B7%E5%9B%BD%EF%BC%8C%E5%A5%A5%E8%BF%AA%E9%9A%A7%E9%81%93.jpg)
![TRIO elements on SKS 180 climbing brackets, used at the jobsite for the Audi tunnel in Ingolstadt for sections higher than 6.55 meters.](https://cdn.peri.cloud/.imaging/mWide/dam/e1c98f0d-5514-47ee-a7b7-f1979dd4bdda/11436/%E5%BE%B7%E5%9B%BD%EF%BC%8C%E5%A5%A5%E8%BF%AA%E9%9A%A7%E9%81%93.jpg)
![德国,奥迪隧道 TRIO elements on SKS 180 climbing brackets, used at the jobsite for the Audi tunnel in Ingolstadt for sections higher than 6.55 meters.](https://cdn.peri.cloud/.imaging/mWide/dam/e1c98f0d-5514-47ee-a7b7-f1979dd4bdda/11436/%E5%BE%B7%E5%9B%BD%EF%BC%8C%E5%A5%A5%E8%BF%AA%E9%9A%A7%E9%81%93.jpg)
![PERI V tie bracket for the efficient mounting of ties when brace frames are used.](https://cdn.peri.cloud/.imaging/mWide/dam/6da9974d-888b-4c82-b908-cfcfc0817794/11435/%E5%BE%B7%E5%9B%BD%EF%BC%8C%E5%A5%A5%E8%BF%AA%E9%9A%A7%E9%81%93.jpg)
![德国,奥迪隧道 PERI V tie bracket for the efficient mounting of ties when brace frames are used.](https://cdn.peri.cloud/.imaging/mWide/dam/6da9974d-888b-4c82-b908-cfcfc0817794/11435/%E5%BE%B7%E5%9B%BD%EF%BC%8C%E5%A5%A5%E8%BF%AA%E9%9A%A7%E9%81%93.jpg)
![Graphical display of the cut-and cover construction method used during the construction of the Audi tunnel in Ingolstadt.](https://cdn.peri.cloud/.imaging/lPortrait/dam/cfeddb4a-978a-41ba-a48b-3e13d9e8b580/11351/%E5%BE%B7%E5%9B%BD%EF%BC%8C%E5%A5%A5%E8%BF%AA%E9%9A%A7%E9%81%93.jpg)
![德国,奥迪隧道 Graphical display of the cut-and cover construction method used during the construction of the Audi tunnel in Ingolstadt.](https://cdn.peri.cloud/.imaging/lPortrait/dam/cfeddb4a-978a-41ba-a48b-3e13d9e8b580/11351/%E5%BE%B7%E5%9B%BD%EF%BC%8C%E5%A5%A5%E8%BF%AA%E9%9A%A7%E9%81%93.jpg)
![Detailed look at brace frame anchoring with PERI V tie bracket.](https://cdn.peri.cloud/.imaging/lPortrait/dam/c62b0975-3568-4682-bc9a-81289a5c433b/11344/%E5%BE%B7%E5%9B%BD%EF%BC%8C%E5%A5%A5%E8%BF%AA%E9%9A%A7%E9%81%93.jpg)
![德国,奥迪隧道 Detailed look at brace frame anchoring with PERI V tie bracket.](https://cdn.peri.cloud/.imaging/lPortrait/dam/c62b0975-3568-4682-bc9a-81289a5c433b/11344/%E5%BE%B7%E5%9B%BD%EF%BC%8C%E5%A5%A5%E8%BF%AA%E9%9A%A7%E9%81%93.jpg)
![View of a wall with two coupled TRIO panel formwork units and brace frame units with waler sections for one concreting segment (right) and section view (left).](https://cdn.peri.cloud/.imaging/mWide/dam/e458cca1-d71a-40a2-8573-057b451975ca/11356/%E5%BE%B7%E5%9B%BD%EF%BC%8C%E5%A5%A5%E8%BF%AA%E9%9A%A7%E9%81%93.jpg)
![德国,奥迪隧道 View of a wall with two coupled TRIO panel formwork units and brace frame units with waler sections for one concreting segment (right) and section view (left).](https://cdn.peri.cloud/.imaging/mWide/dam/e458cca1-d71a-40a2-8573-057b451975ca/11356/%E5%BE%B7%E5%9B%BD%EF%BC%8C%E5%A5%A5%E8%BF%AA%E9%9A%A7%E9%81%93.jpg)
![Ground plan of brace frame positions for one concreting cycle length with stopend formwork and tie positions.](https://cdn.peri.cloud/.imaging/mWide/dam/a9e77127-c74c-4146-bbe9-badff95fd292/11358/%E5%BE%B7%E5%9B%BD%EF%BC%8C%E5%A5%A5%E8%BF%AA%E9%9A%A7%E9%81%93.jpg)
![德国,奥迪隧道 Ground plan of brace frame positions for one concreting cycle length with stopend formwork and tie positions.](https://cdn.peri.cloud/.imaging/mWide/dam/a9e77127-c74c-4146-bbe9-badff95fd292/11358/%E5%BE%B7%E5%9B%BD%EF%BC%8C%E5%A5%A5%E8%BF%AA%E9%9A%A7%E9%81%93.jpg)
![德国,奥迪隧道 PERI brace frame structure to transfer the loads during single-sided concreting with ties of the DW 26 system, at the jobsite for the Audi tunnel in Ingolstadt.](https://cdn.peri.cloud/.imaging/mWide/dam/3111b814-dff9-48df-b012-e4827d43c258/11448/%E5%BE%B7%E5%9B%BD%EF%BC%8C%E5%A5%A5%E8%BF%AA%E9%9A%A7%E9%81%93.jpg)
在使用单侧模板,面向已经存在的墙体浇筑混凝土时,需要将整个模板平面上的现浇混凝土的侧向压力通过相应的拉杆系统与单侧支架传递给基础结构。为了提高单侧支架的承载能力(2x250kN),每个SB支架使用两个DW 26拉杆。
![德国,奥迪隧道 Brace frames and TRIO panel formwork elements used at the jobsite for the Audi tunnel in Ingolstadt.](https://cdn.peri.cloud/.imaging/lPortrait/dam/952ec2fb-f407-485d-9cfd-58de422e8f79/11431/%E5%BE%B7%E5%9B%BD%EF%BC%8C%E5%A5%A5%E8%BF%AA%E9%9A%A7%E9%81%93.jpg)
南侧墙体高于标准墙高度,可达9.60米,高度方向上分段浇筑: 首层浇筑6.55米高,使用SB单侧支架与TRIO模板, 第二次浇筑结合TRIO模板与SKS180单面爬架系统。
![德国,奥迪隧道 TRIO elements on SKS 180 climbing brackets, used at the jobsite for the Audi tunnel in Ingolstadt for sections higher than 6.55 meters.](https://cdn.peri.cloud/.imaging/mWide/dam/e1c98f0d-5514-47ee-a7b7-f1979dd4bdda/11436/%E5%BE%B7%E5%9B%BD%EF%BC%8C%E5%A5%A5%E8%BF%AA%E9%9A%A7%E9%81%93.jpg)
南侧墙体高于标准墙高度,可达9.60米,高度方向上分段浇筑: 首层浇筑6.55米高,使用SB单侧支架与TRIO模板, 第二次浇筑结合TRIO模板与SKS180单面爬架系统。
![德国,奥迪隧道 PERI V tie bracket for the efficient mounting of ties when brace frames are used.](https://cdn.peri.cloud/.imaging/mWide/dam/6da9974d-888b-4c82-b908-cfcfc0817794/11435/%E5%BE%B7%E5%9B%BD%EF%BC%8C%E5%A5%A5%E8%BF%AA%E9%9A%A7%E9%81%93.jpg)
派利V型拉杆支架保证了单侧支架能够快速固定安装。
![德国,奥迪隧道 Graphical display of the cut-and cover construction method used during the construction of the Audi tunnel in Ingolstadt.](https://cdn.peri.cloud/.imaging/lPortrait/dam/cfeddb4a-978a-41ba-a48b-3e13d9e8b580/11351/%E5%BE%B7%E5%9B%BD%EF%BC%8C%E5%A5%A5%E8%BF%AA%E9%9A%A7%E9%81%93.jpg)
在地下连续墙施工完成后,浇筑其上方的隧道顶板;随后采用明挖法在隧道入口处开始施工。
![德国,奥迪隧道 Detailed look at brace frame anchoring with PERI V tie bracket.](https://cdn.peri.cloud/.imaging/lPortrait/dam/c62b0975-3568-4682-bc9a-81289a5c433b/11344/%E5%BE%B7%E5%9B%BD%EF%BC%8C%E5%A5%A5%E8%BF%AA%E9%9A%A7%E9%81%93.jpg)
派利侧向支架锚固件与V型拉杆支架细部。
![德国,奥迪隧道 View of a wall with two coupled TRIO panel formwork units and brace frame units with waler sections for one concreting segment (right) and section view (left).](https://cdn.peri.cloud/.imaging/mWide/dam/e458cca1-d71a-40a2-8573-057b451975ca/11356/%E5%BE%B7%E5%9B%BD%EF%BC%8C%E5%A5%A5%E8%BF%AA%E9%9A%A7%E9%81%93.jpg)
TRIO墙体模板连成一体的立面图(右)与单侧支架与钢梁分布截面图(左)。
![德国,奥迪隧道 Ground plan of brace frame positions for one concreting cycle length with stopend formwork and tie positions.](https://cdn.peri.cloud/.imaging/mWide/dam/a9e77127-c74c-4146-bbe9-badff95fd292/11358/%E5%BE%B7%E5%9B%BD%EF%BC%8C%E5%A5%A5%E8%BF%AA%E9%9A%A7%E9%81%93.jpg)
TRIO墙体模板连成一体的立面图与单侧支架与钢梁分布截面图。
客户需求与派利工程解决方案
