Motorway bridge over the Rio Sordo, Vila Real, Portugal - Up to 30 m high VARIOKIT VST heavy-duty shoring towers served as falsework for the construction of the bridge edge sections. Each leg carried a load of around 600 kN.

横跨Rio Sordo的高速公路桥
葡萄牙, Vila Real

A4线高速公路桥跨越马略山的索尔多山谷

结构: 5跨桥梁结构，两个方向的车道为独立的上部结构
施工方式: 悬臂式施工、边跨部分由承重支架提供支撑
总长度: 412米





地点
葡萄牙
项目类别
交通项目
客户介绍
客户: INFRATÚNEL, Construtores do Túnel do Marão A.C.E., Porto

项目实现

工地快照、项目记录
1 /
7
Motorway bridge over the Rio Sordo, Vila Real, Portugal - Up to 30 m high VARIOKIT VST heavy-duty shoring towers served as falsework for the construction of the bridge edge sections. Each leg carried a load of around 600 kN.
Motorway bridge over the Rio Sordo, Vila Real, Portugal - Up to 30 m high VARIOKIT VST heavy-duty shoring towers served as falsework for the construction of the bridge edge sections. Each leg carried a load of around 600 kN.

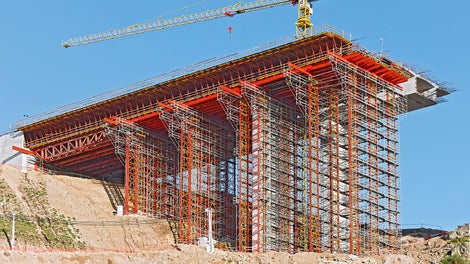

高达30米的VARIOLKIT VST高强塔架作为桥梁跨中结构的临时承重支架。每根支腿需要承载约600kN的荷载。

客户需求与派利工程解决方案

要求
桥梁上部结构宽度由16米变化为19.40米
72米长的桥梁上部结构，根据受力传递要求将轴距定义在10米与24米之间
解决方案

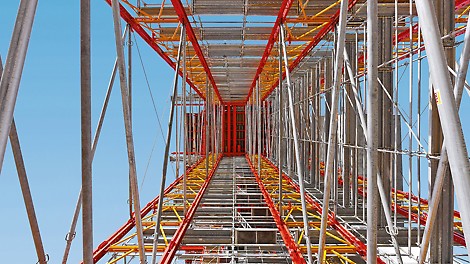

使用VARIOKIT高强塔架系统，组成30米高的承重支架
为桥墩提供CB/VARIO 爬模方案
为桥墩墩头结构提供横向悬挂的SB单侧支架

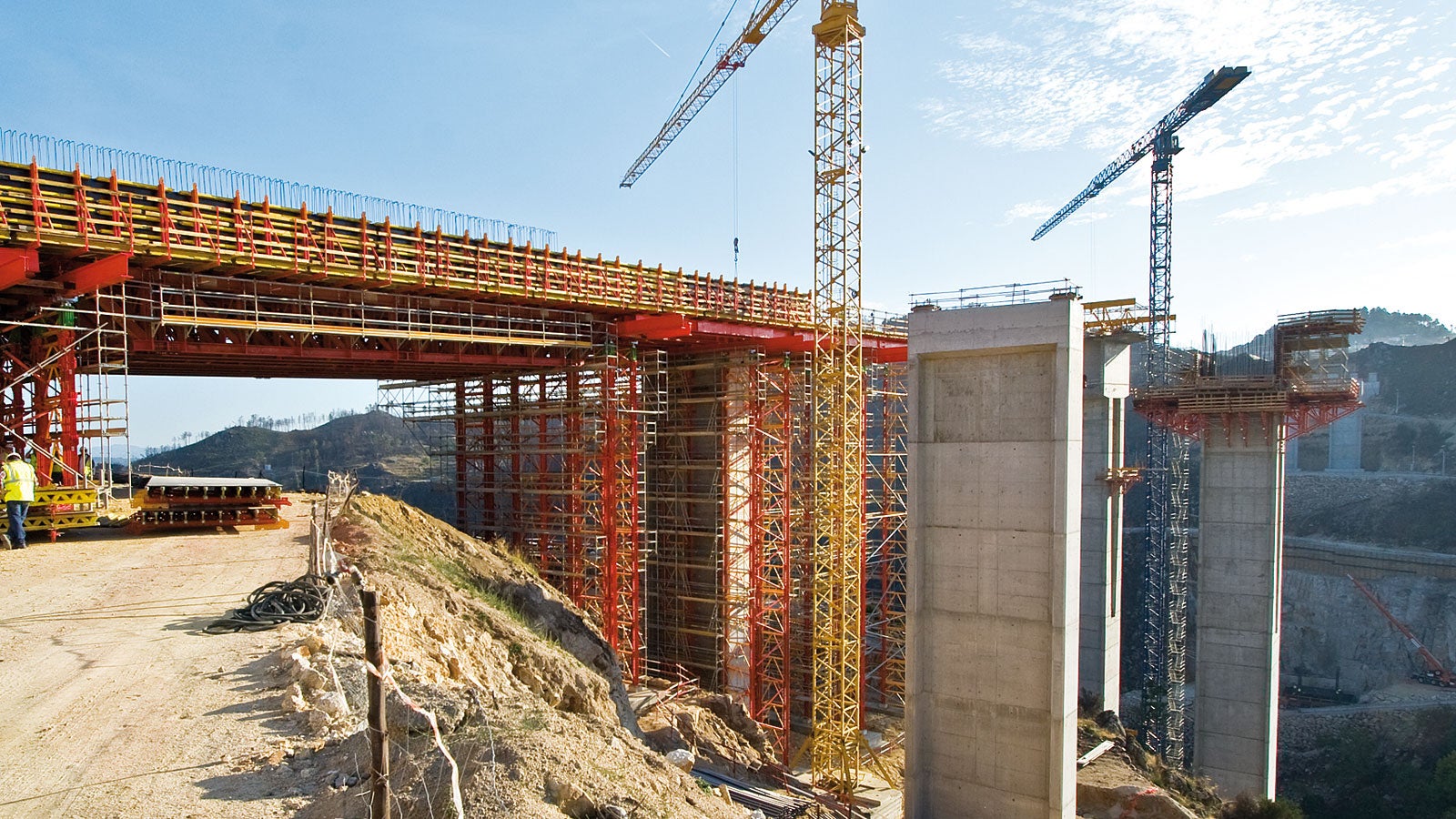

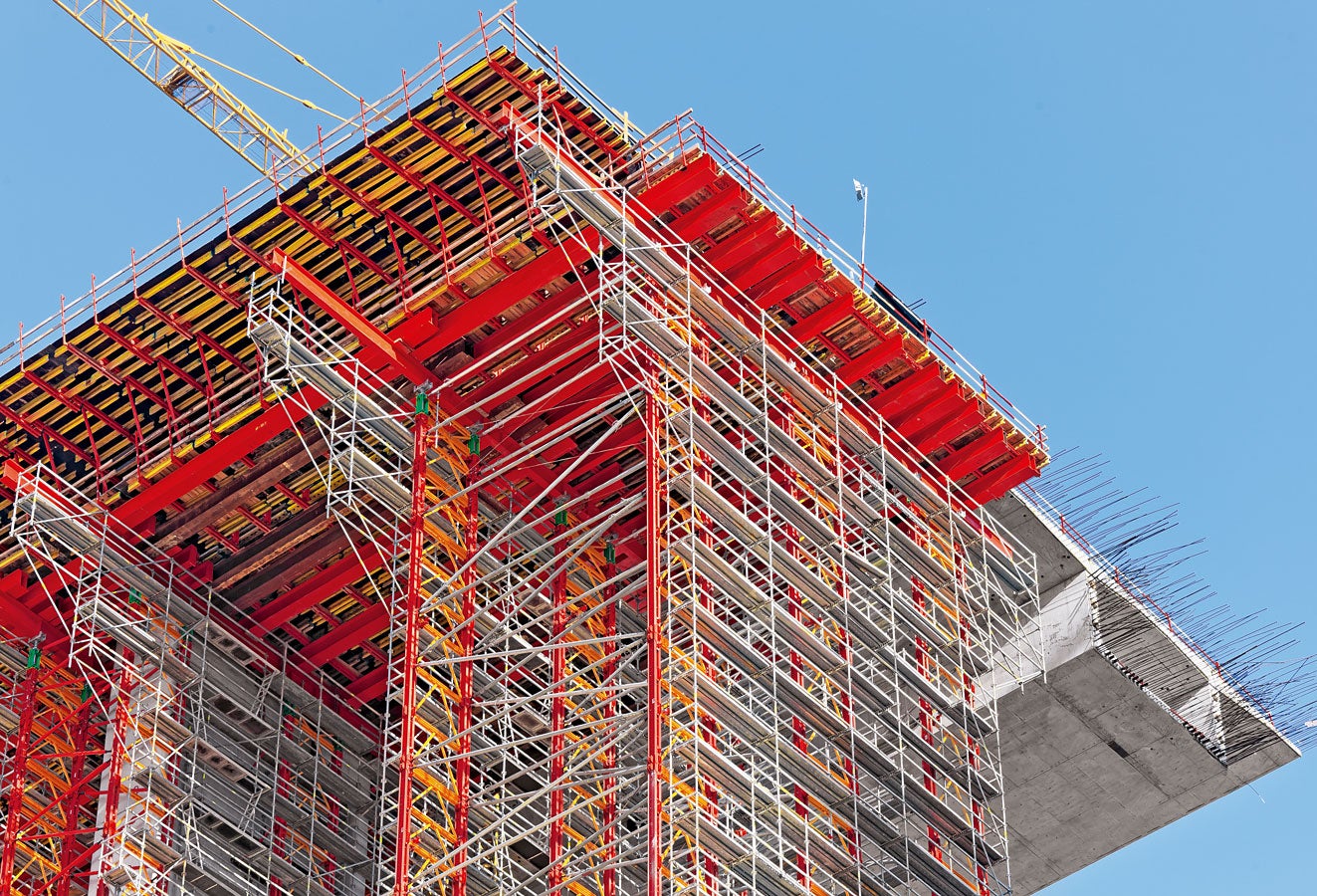

使用VARIOKIT为4个边跨的桥梁上部结构提供模板方案和承重支架

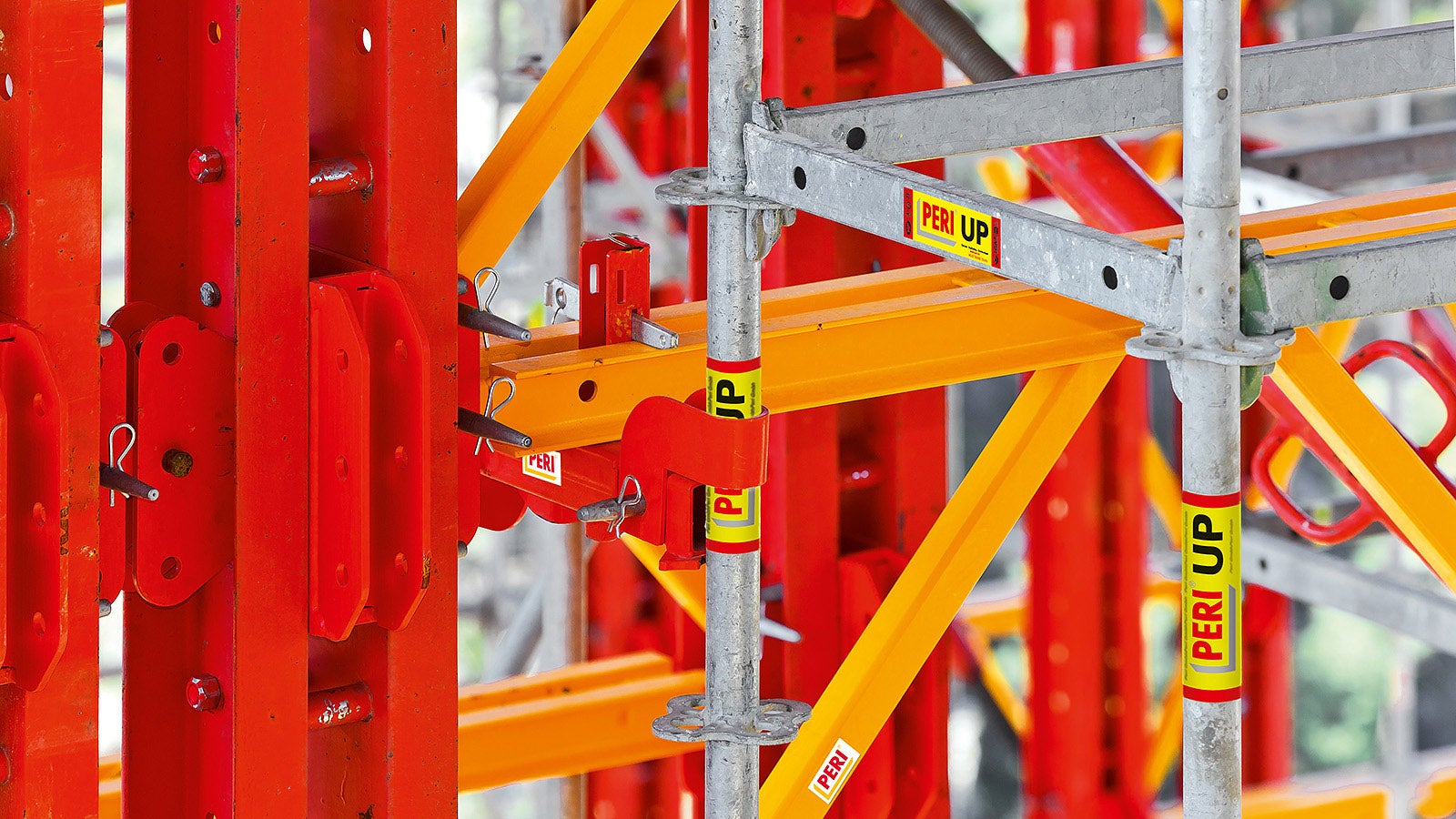

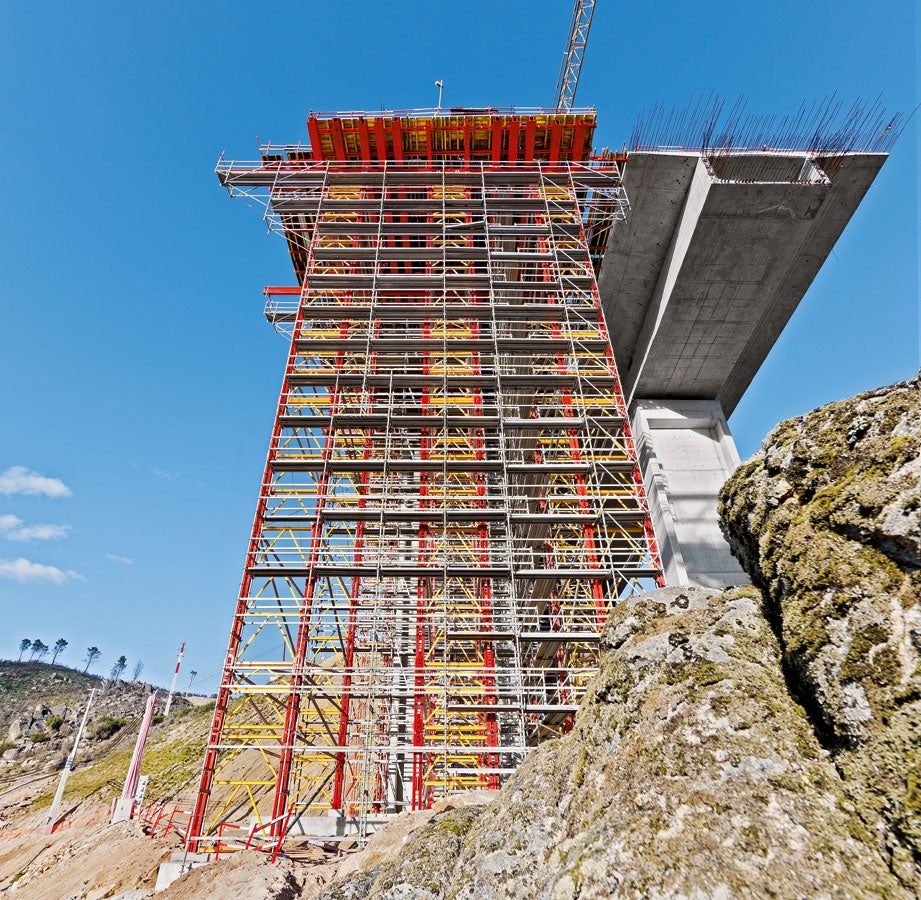

提供PERI UP盘扣式作业脚手架系统和安全的通道系统
展开
客户利益
减少支架材料备货量以及缩短组装时间
提供灵活性高、模块化的VARIOKIT系统
快速、实用的现场组装

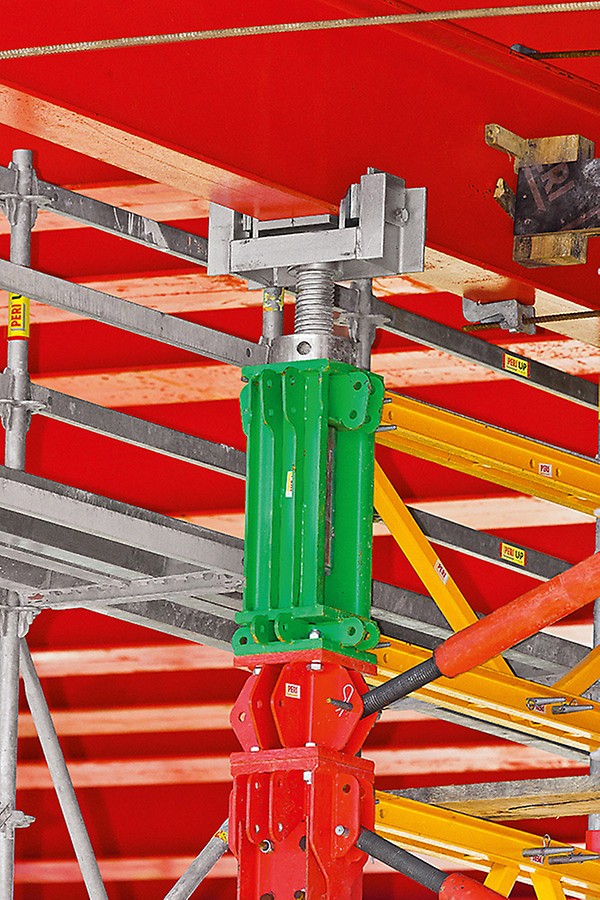

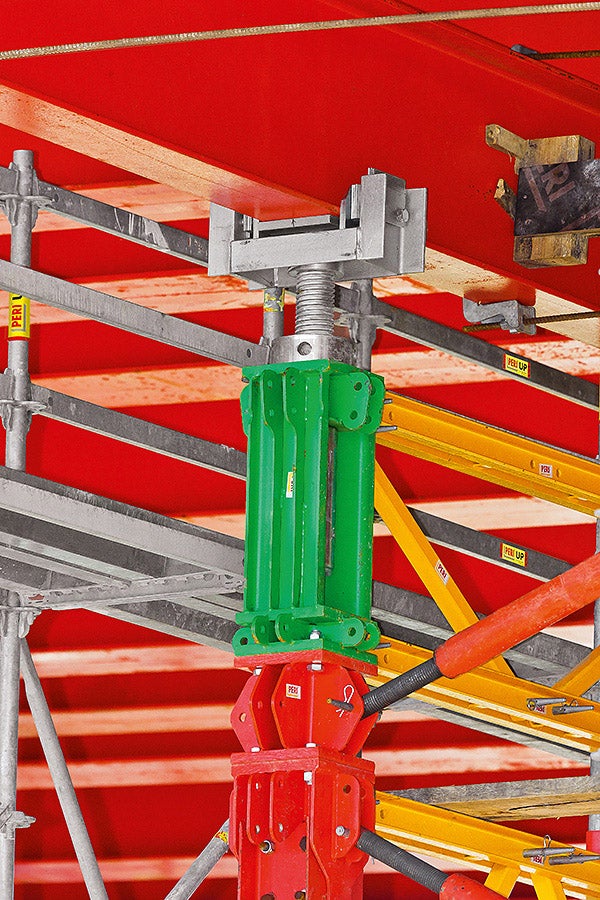

使用VST高强塔架能够灵活适应不同的高度。预组装操作提高了现场施工速度。
