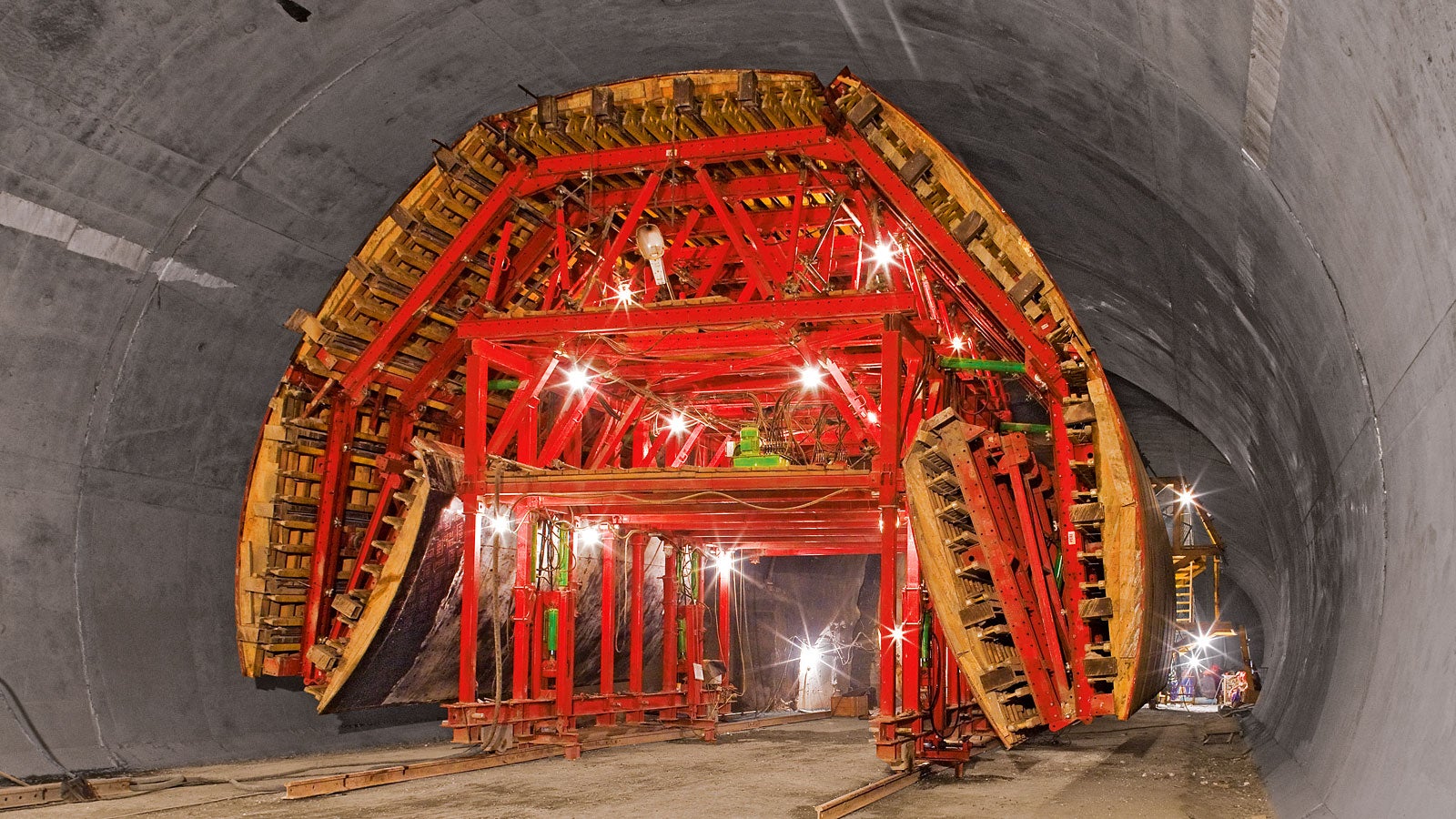

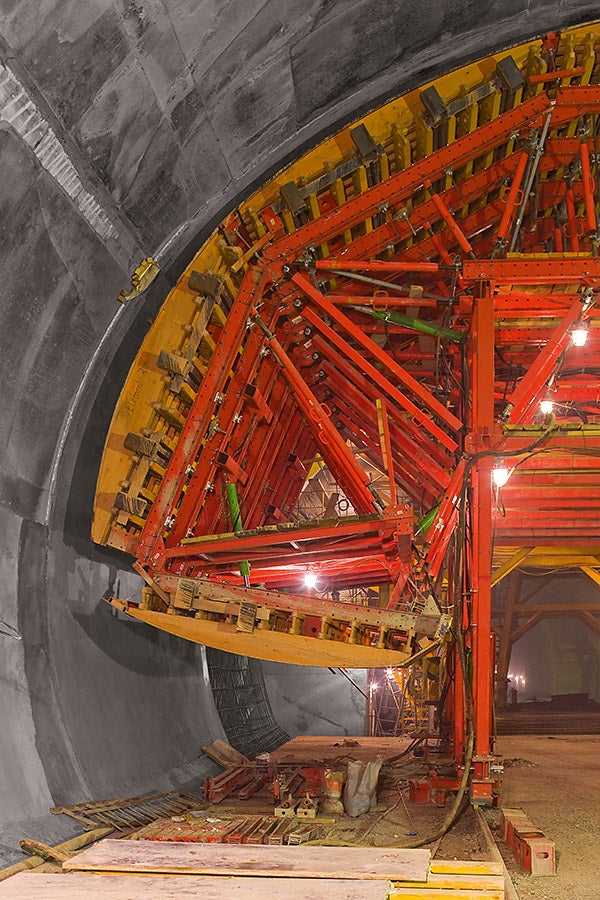

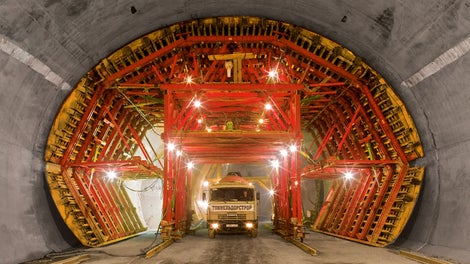

Bypass tunnel Sochi, Russia - For construction of the emergency parking bays, the formwork carriage was designed with a width of 14.30 m. Moving the carriage to the next bay through the smaller-sized standard cross-section, required a reduction in the maximum external dimensions.

Bypass tunnel Sochi, Russia - For construction of the emergency parking bays, the formwork carriage was designed with a width of 14.30 m. Moving the carriage to the next bay through the smaller-sized standard cross-section, required a reduction in the maximum external dimensions.

索契隧道
俄罗斯, 索契

隧道长度: 2.60公里
横截面宽度/高度: 10.80米 / 7.95 米
施工方式: 矿山法

地点

俄罗斯

项目类别

交通项目

客户介绍

建筑公司: OOO Tonneldorstroy，索契

项目实现

工地快照、项目记录

客户需求与派利工程解决方案

Alexey Boldyirew, Deputy Construction Manager | Sergey Haladji, Foreman

Alexey Boldyirew, Deputy Construction Manager | Sergey Haladji, Foreman

Alexey Boldyirew, Deputy Construction Manager | Sergey Haladji, Foreman

Alexey Boldyirew | Sergey Haladji

施工副经理 | 工长

最初我们对派利公司提供的精巧结构还抱有怀疑，但随着施工的进行，我们越来越信任它们。派利公司的模板台车十分稳定、实用，能够满足我们施工现场的所有要求。

相关产品系统

模板、脚手架、工程技术服务

高效、经济、安全

Bypass tunnel Sochi, Russia - For construction of the emergency parking bays, the formwork carriage was designed with a width of 14.30 m. Moving the carriage to the next bay through the smaller-sized standard cross-section, required a reduction in the maximum external dimensions.

Bypass tunnel Sochi, Russia - For construction of the emergency parking bays, the formwork carriage was designed with a width of 14.30 m. Moving the carriage to the next bay through the smaller-sized standard cross-section, required a reduction in the maximum external dimensions.

Bypass tunnel Sochi, Russia - For construction of the emergency parking bays, the formwork carriage was designed with a width of 14.30 m. Moving the carriage to the next bay through the smaller-sized standard cross-section, required a reduction in the maximum external dimensions.
