The refurbished Williams Bridge is an important road link between the northern and southern districts of Rotterdam. Its unrestricted and safe use was also to be ensured during the scaffolding operations and renovation work.

威廉姆斯大桥
荷兰, 鹿特丹

为鹿特丹威廉姆斯大桥桥塔的翻修提供脚手架

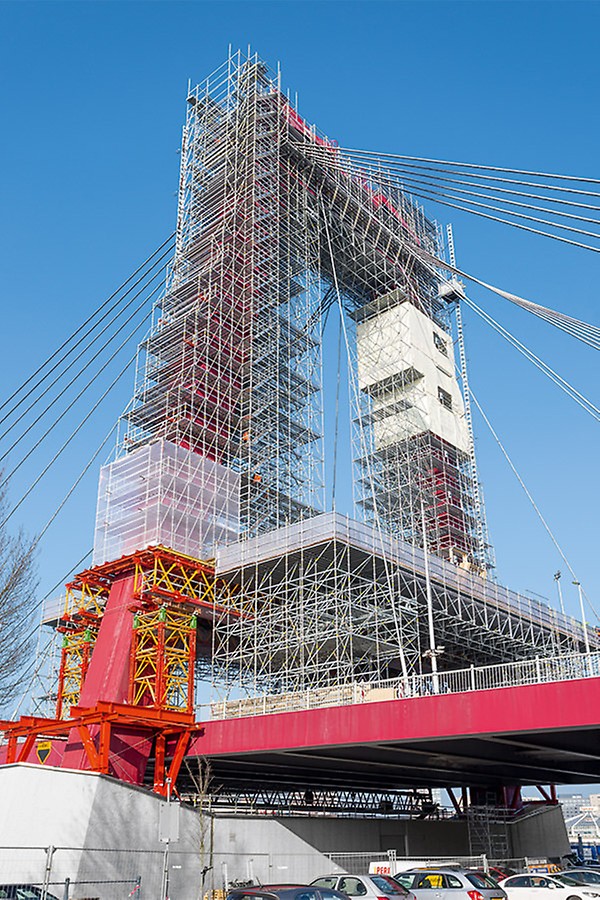

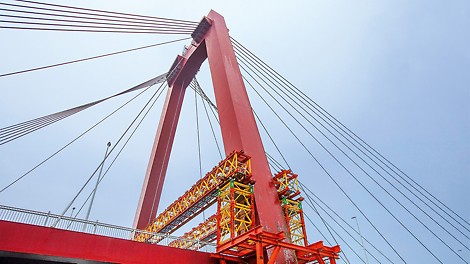

为斜拉桥的南、北两个60米高的钢制桥塔先后搭建脚手架，进行翻新。

地点
荷兰
项目类别
交通项目
客户介绍
客户: Steigerbouw Van der Panne，鹿特丹

项目实现

工地快照、项目记录
1 /
7
The refurbished Williams Bridge is an important road link between the northern and southern districts of Rotterdam. Its unrestricted and safe use was also to be ensured during the scaffolding operations and renovation work.
The refurbished Williams Bridge is an important road link between the northern and southern districts of Rotterdam. Its unrestricted and safe use was also to be ensured during the scaffolding operations and renovation work.
威廉姆大桥是鹿特丹南北之间的交通要道。在脚手架搭建和桥梁翻新工程中，必须确保施工绝对不影响正常交通

客户需求与派利工程解决方案

要求
在不影响城市交通的情况下搭建脚手架、完成桥塔喷漆工作
由于桥梁上部结构是自由悬吊系统，因此不能在车道上安装200吨重的脚手架结构
道路交通和上方的作业区域进行严格封闭处理
解决方案
PERI UP和VARIOKIT组成项目定制的脚手架方案，两个系统几乎能够任意搭配使用。

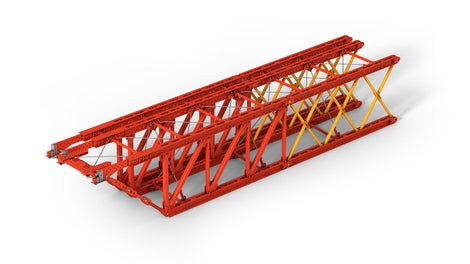

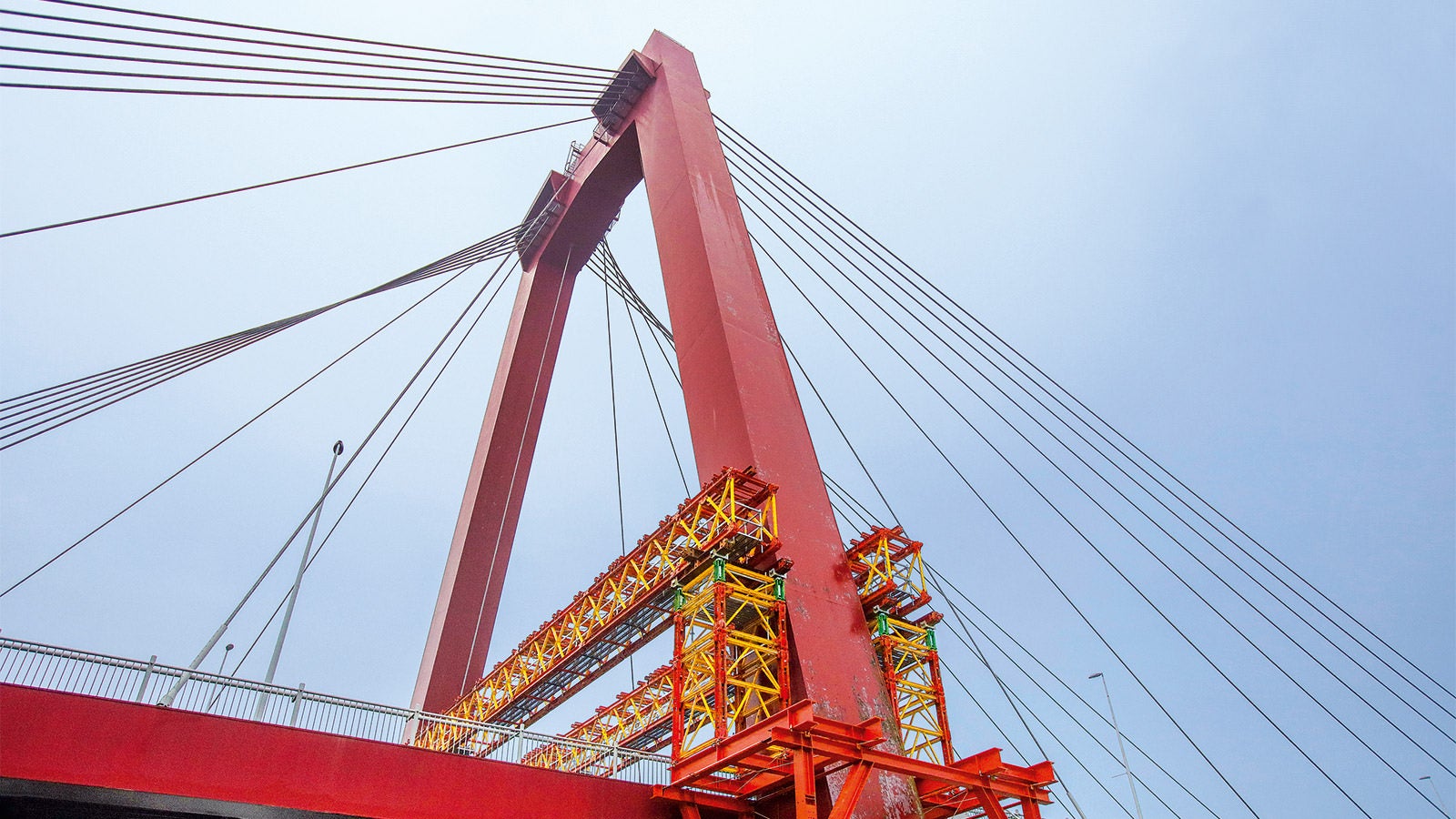

使用VARIOKIT工程套件中的VRB桁架梁和VST高强塔架搭建与桥面宽度一致近40米宽的承重结构，需要可靠地传递极高的荷载
将预组装的21米长的桁架梁单元运送至施工现场

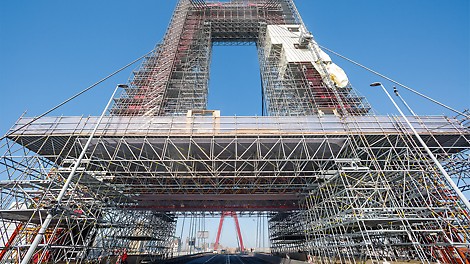

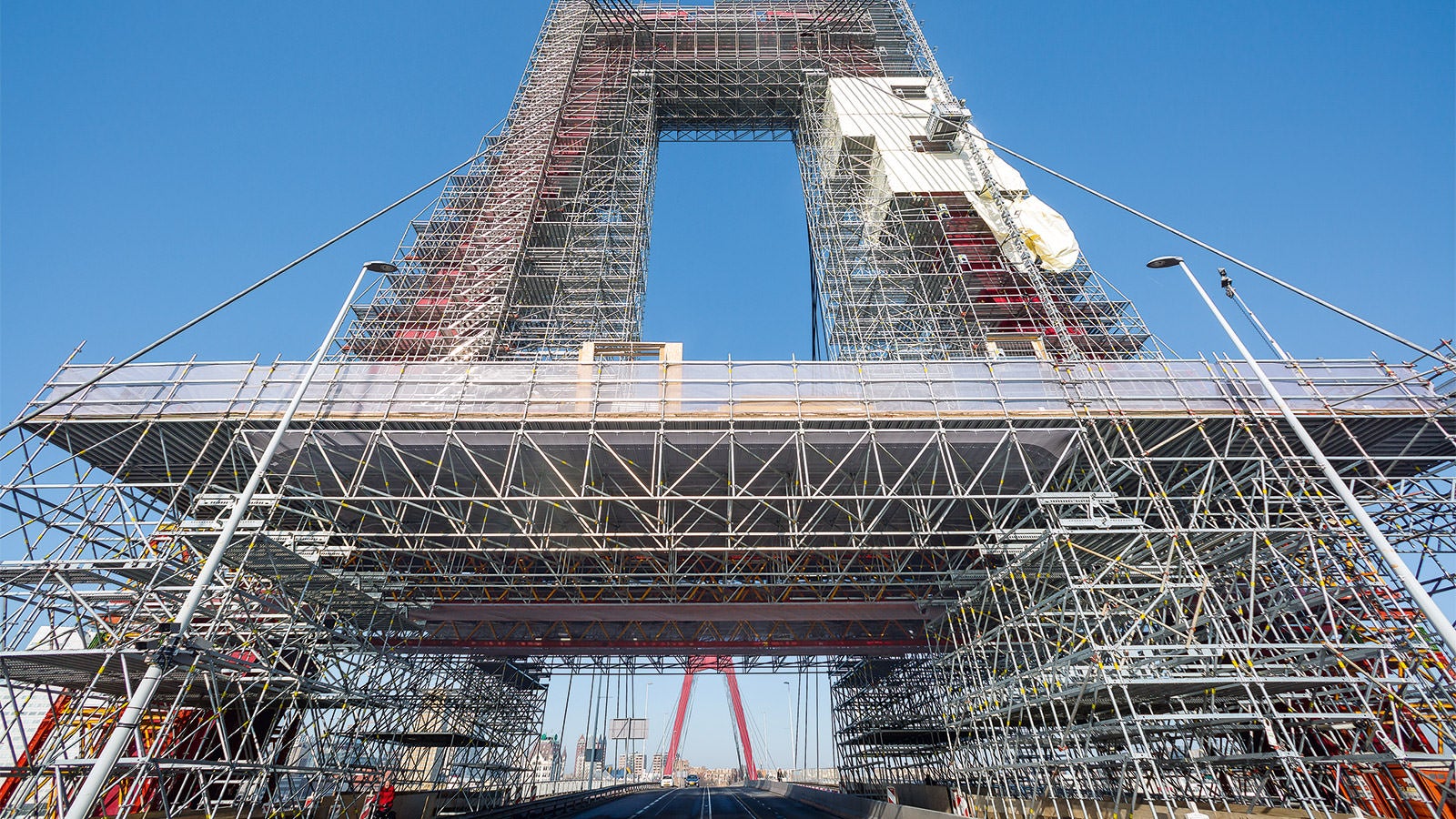

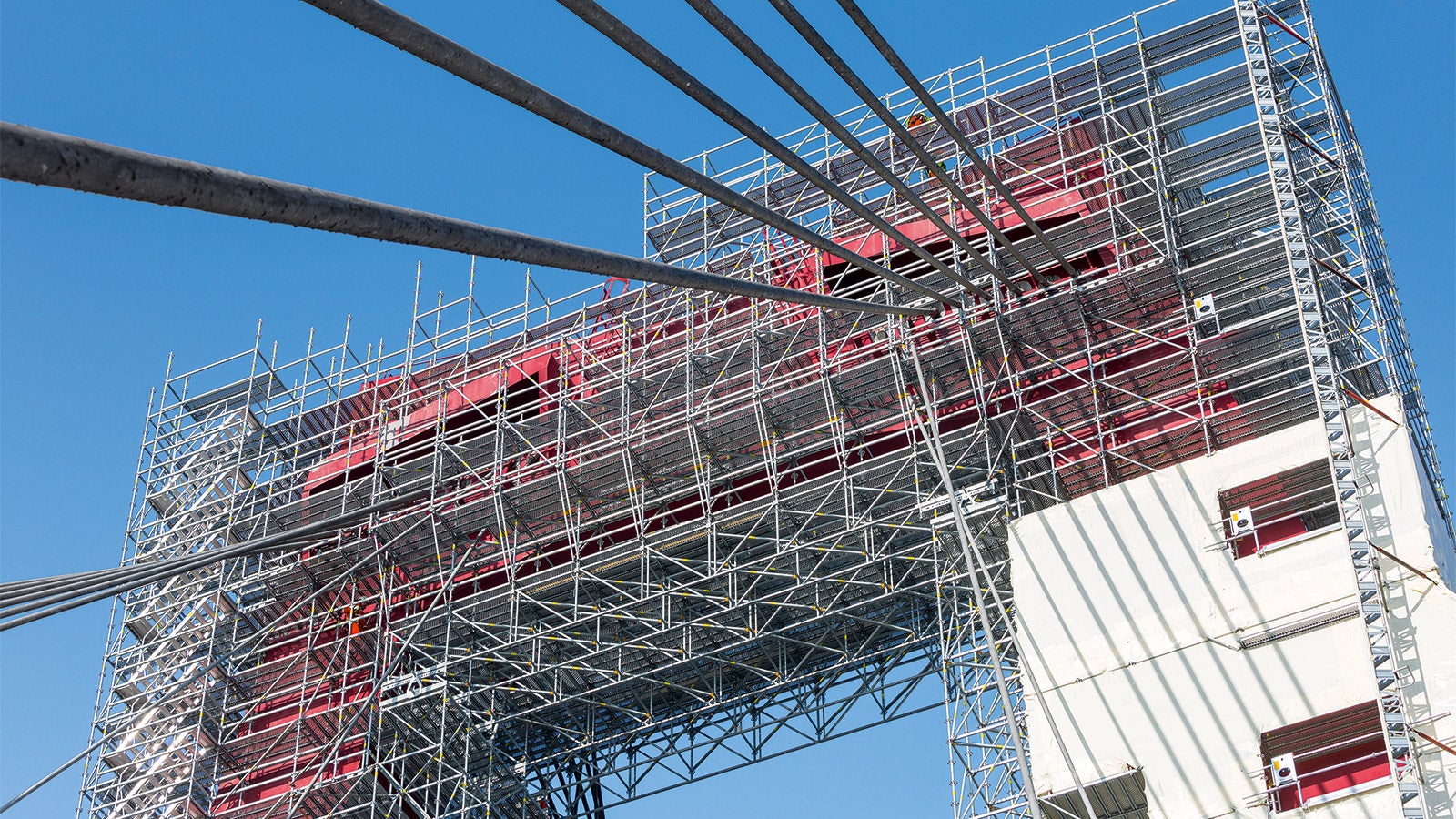

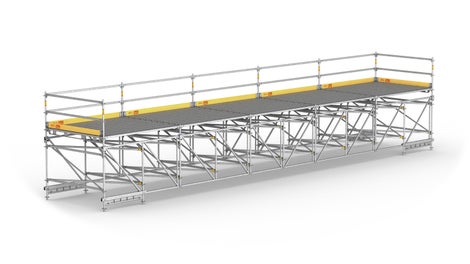

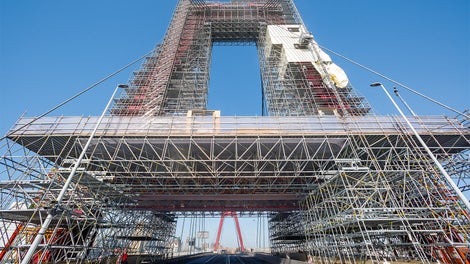

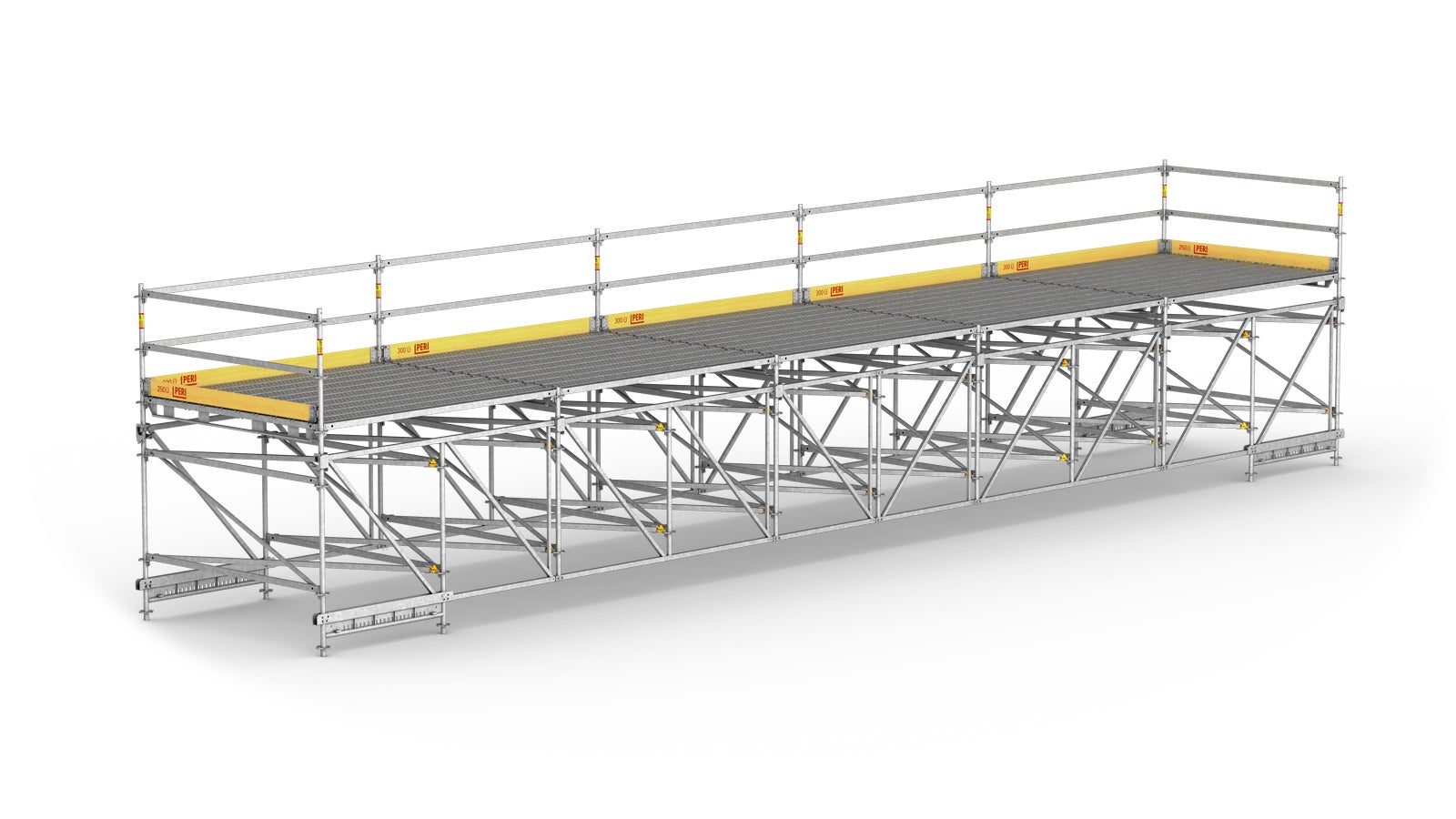

在50米的高空搭建跨度12米的作业平台，并在两侧搭建10米的预组装LGS防护顶棚结构

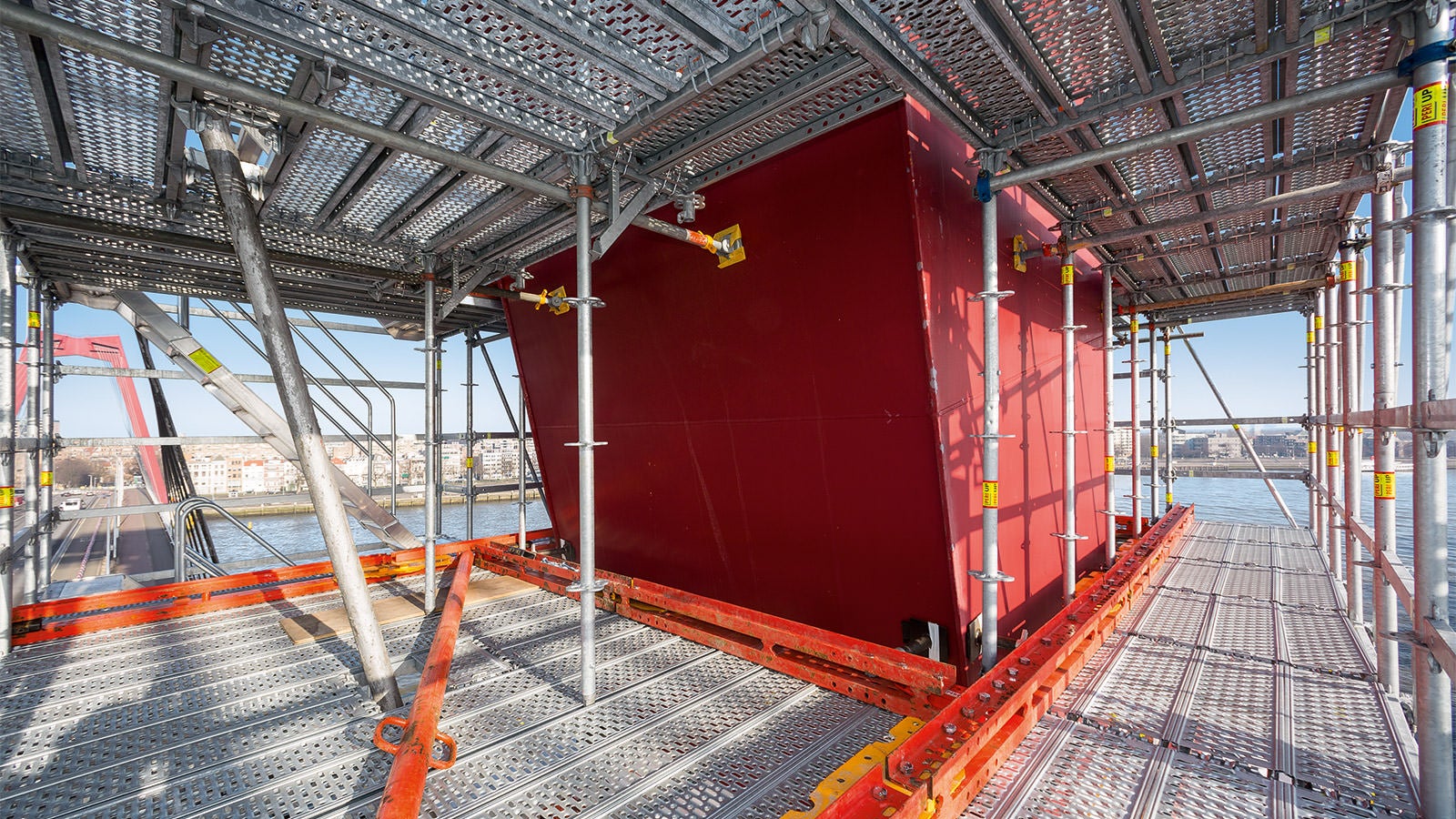

为防风施工提供锚固方案和四周封闭的防护屏
展开
客户利益
灵活的脚手架方案，能够适应桥塔造型
综合考虑通道系统的安全的作业平台

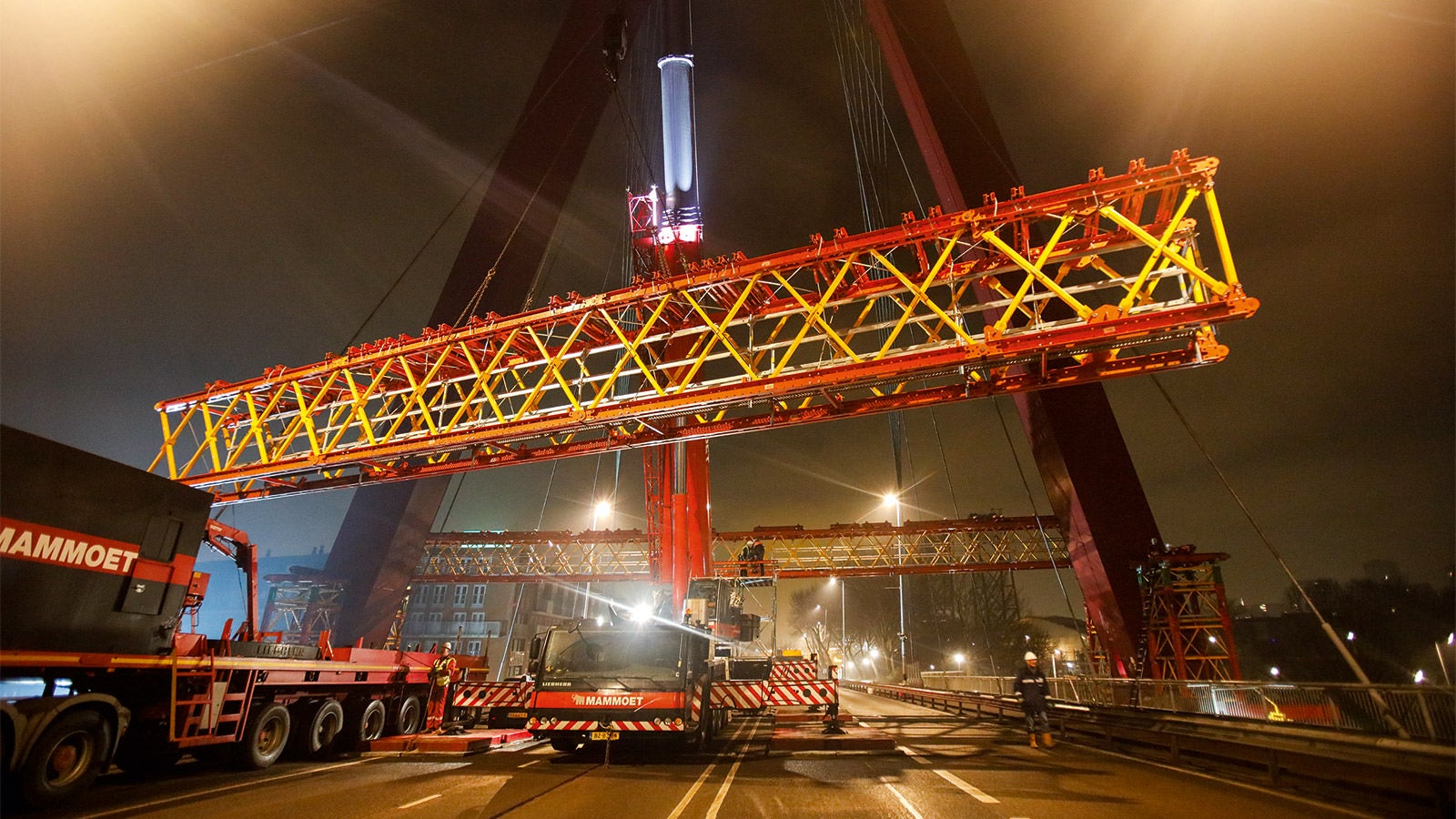

通宵完成VARIOKIT天桥系统的安装，减少了交通的中断时间
共同制定细节丰富的施工方案、PERI UP脚手架与VARIOKIT系统能够灵活地组合使用，显著地节省了脚手架的安装、拆卸以及从南部桥塔转运至北部桥塔的时间。
展开
Portrait of Marcel Broekman, Project Manager at Steigerbouw Van der Panne, Rotterdam
Portrait of Marcel Broekman, Project Manager at Steigerbouw Van der Panne, Rotterdam
Marcel Broekman
项目经理
我们与派利公司一起为这个异常复杂的桥塔结构制定了一个绝佳的施工方案。通宵在混凝土基础上安装60米高、200吨重的VARIOKIT 天桥结构，确保了桥面结构不受力、同时保证施工过程中交通不受影响，我们的所有工作能够在预定的工期内完成。组合使用VARIOKIT和PERI UP系统更好的加固和锚固系统，多次经历了10级强风。总而言之，我们对于派利产品和这次合作非常满意-该项目是工程技术应用的样板工程。
