The flexible solution for facades and stair towers

75型 PERI UP Flex施工梯塔架

轻质的施工梯塔架、灵活的通道方案。

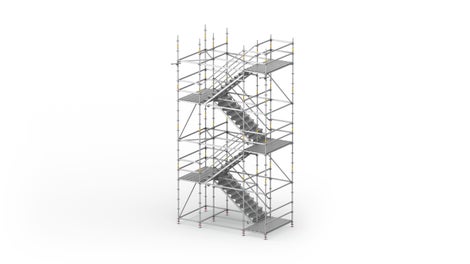

轻质、焊接而成的施工梯铝制阶梯段可快速的连接在模数化PERI UP的连接横杆上。该施工梯塔架由四个立杆组成，可按单跑或双跑最高搭建至100米。 PERI UP Flex施工梯塔架的设计承载能力为2 kN/m²，可作为通往作业、施工空间的通道。


技术细节

  • 可快速安装的、焊接成型的阶梯，宽度为75厘米(阶梯段净宽67厘米)。
  • 该施工梯塔架可按单跑、双跑进行搭建，高度方向搭建范围: 2-66米 (根据项目要求，可最高搭建至100 米)  。
  • 平面尺寸: 1.5米 x 2.5米和1.5米 x 3米。
  • 最大允许荷载: 2 kN/m²（阶梯段结构、踏脚板） ; 整体结构上，每20米阶梯段的承载能力是2 kN/m²。
  • 高度方向以25厘米为模数，凭借可侧向安装的支架，与建筑开口连接。
  • 也可安装成并列的两个方向的交叉施工梯，中间可安装栏杆。


在狭窄空间的应用

主体施工/装修施工梯塔架

在建筑物内部，较小的空间也可以使用施工梯塔架。为此相同高度处以90°安装较短的横杆，选择长度、高度较小的阶梯段单元。施工梯塔架同时也可作为墙面施工的操作平台。使用标准组件，施工梯塔架可以25厘米为模数进行增高搭建。

  • 灵活架设

    以25厘米为模数，保证了施工梯塔架在狭窄空间内，可闭合所有区域。

  • 易于调整

    不受楼层高度限制，可使用支架以及较短的阶梯与建筑开口相连。



  • 快速组装

    只需少量的横杆和锚固组件。

产品图片

  • The flexible solution for facades and stair towers
    轻质、灵活的通道解决方案

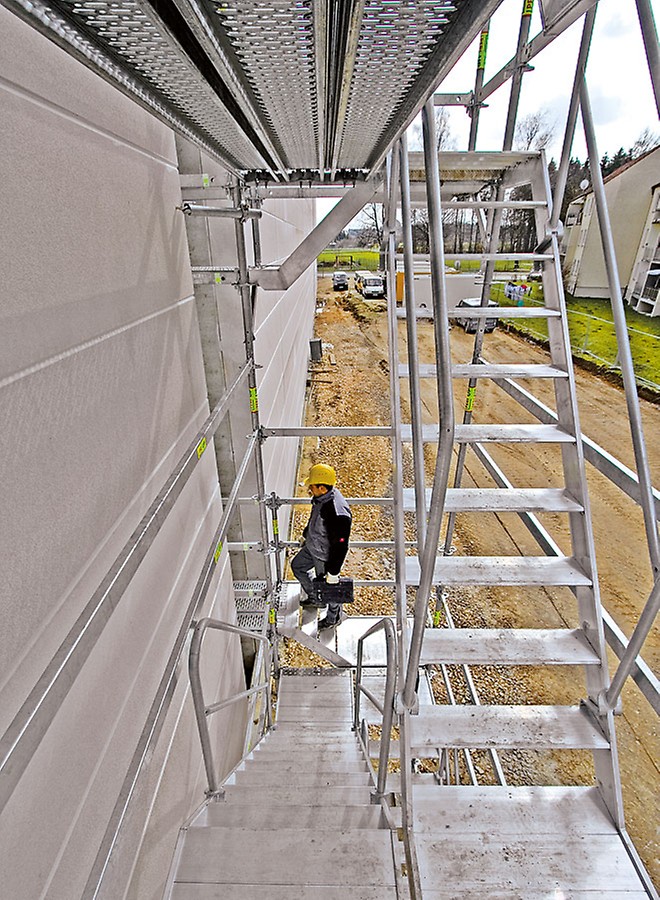

  • The PERI UP Stairs have guardrails that can be mounted from a secured position. Used together with the guardrail in advance assembly of the facade scaffold, PPE is not necessarily required, as the fitter is always protected from falling by the system.

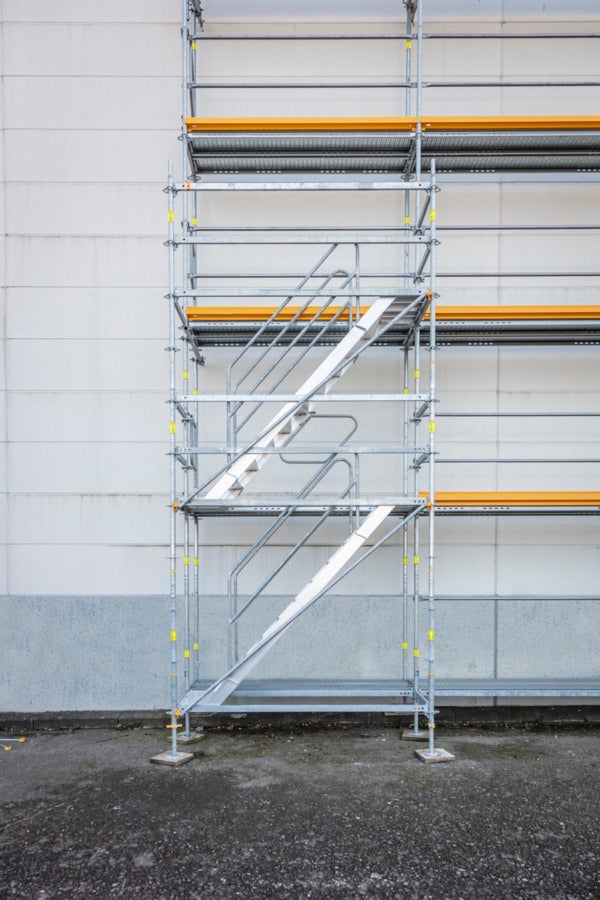

    安装外接支架并使用较短的阶梯段灵活适应建筑开口，不受楼层高度的限制。
  • Due to the use of standard components, PERI UP Stairs can be be moundted on the scaffold directly without the need for couplings, tubes or additional row of verticals. This not only speeds up assembly, but also saves time and money.

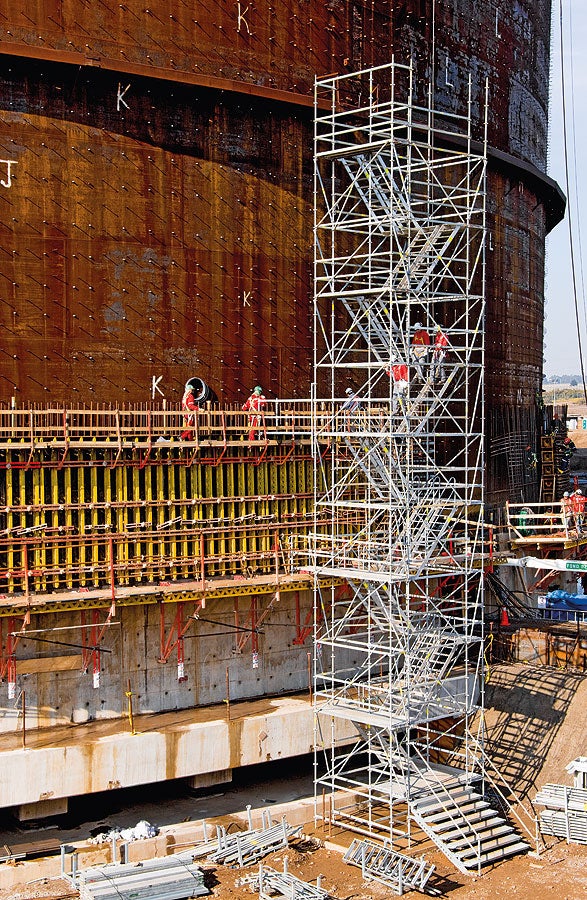

    图示为一个液化天然气罐工程中使用的双跑施工梯塔架，外部的防护栏以及中间的楼梯斜梁提供了安全的通道。
  • The numerous combination possibilities offered by the PERI UP Scaffolding Kit make it possible to achieve a high degree of application diversity with only a few components. The staircase solution can be easily attached to the PERI UP Facade Scaffold.

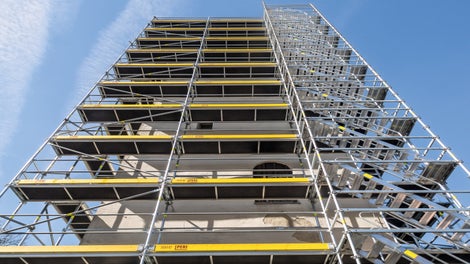

    较短的阶梯段宽度为75厘米，能够灵活适应狭小的空间以及狭窄的几何尺寸。
  • PERI UP Stairs not only offer high level of protection and employee safety, but also fleixibility in the choice of components. A wide range of staircase ends can be installed using the standard components of the PERI UP Scaffolding Kit.
    通过连接端面的施工梯单元可以到达每一楼层。

图片预览

The flexible solution for facades and stair towers
The flexible solution for facades and stair towers
The PERI UP Stairs have guardrails that can be mounted from a secured position. Used together with the guardrail in advance assembly of the facade scaffold, PPE is not necessarily required, as the fitter is always protected from falling by the system.
The PERI UP Stairs have guardrails that can be mounted from a secured position. Used together with the guardrail in advance assembly of the facade scaffold, PPE is not necessarily required, as the fitter is always protected from falling by the system.
Due to the use of standard components, PERI UP Stairs can be be moundted on the scaffold directly without the need for couplings, tubes or additional row of verticals. This not only speeds up assembly, but also saves time and money.
Due to the use of standard components, PERI UP Stairs can be be moundted on the scaffold directly without the need for couplings, tubes or additional row of verticals. This not only speeds up assembly, but also saves time and money.
The numerous combination possibilities offered by the PERI UP Scaffolding Kit make it possible to achieve a high degree of application diversity with only a few components. The staircase solution can be easily attached to the PERI UP Facade Scaffold.
The numerous combination possibilities offered by the PERI UP Scaffolding Kit make it possible to achieve a high degree of application diversity with only a few components. The staircase solution can be easily attached to the PERI UP Facade Scaffold.
PERI UP Stairs not only offer high level of protection and employee safety, but also fleixibility in the choice of components. A wide range of staircase ends can be installed using the standard components of the PERI UP Scaffolding Kit.
PERI UP Stairs not only offer high level of protection and employee safety, but also fleixibility in the choice of components. A wide range of staircase ends can be installed using the standard components of the PERI UP Scaffolding Kit.
轻质、灵活的通道解决方案
安装外接支架并使用较短的阶梯段灵活适应建筑开口，不受楼层高度的限制。

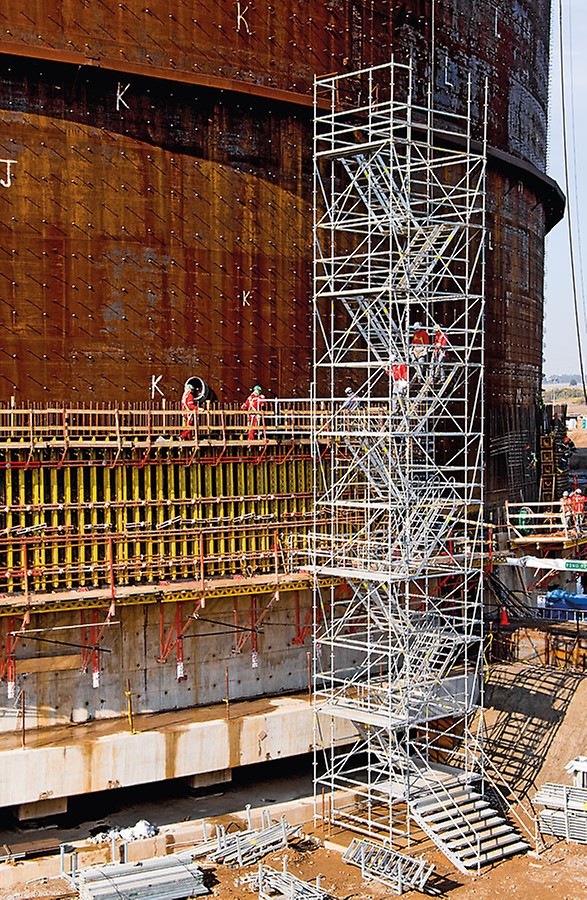

图示为一个液化天然气罐工程中使用的双跑施工梯塔架，外部的防护栏以及中间的楼梯斜梁提供了安全的通道。
较短的阶梯段宽度为75厘米，能够灵活适应狭小的空间以及狭窄的几何尺寸。
通过连接端面的施工梯单元可以到达每一楼层。

相关产品系统

模板、脚手架、工程技术服务

高效、快速、安全

联系我们

项目实例

  • The Al Bustan Street South construction project is one of four parts that make up the Sabah Al Ahmad Corridor infrastructure project and features bridges with a total length of more than 10 km.
    多哈 Al Bustan 南大街高速公路桥, 卡塔尔
    为多哈市具有挑战性项目提供施工方案
    查看项目

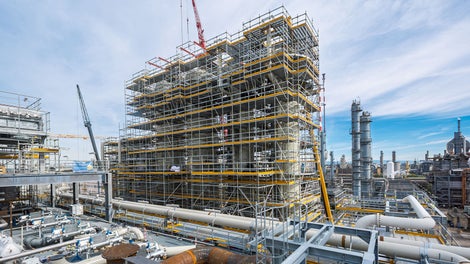

  • At BASF's largest current investment project, an innovative scaffolding concept based on the PERI UP Flex scaffolding system has been saving both time and money - and has also set high standards regarding work safety.
    路德维希港 巴斯夫路德维希港,新建乙炔工厂, 德国
    使用创新的BIM方法为工业设施工程设计脚手架方案
    查看项目
  • Three elevated high-rise structures for the new SPRM administrative centre. PERI supported the construction progress with an efficient climbing solution, complex shoring construction along with a comprehensive range of services.
    马来西亚 马来西亚，SPRM 办公大厦, 布城
    由3栋30层的建筑组成造型独特的建筑群
    查看项目

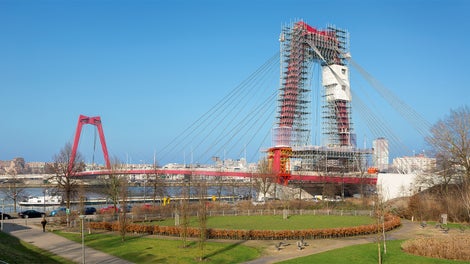

  • The refurbished Williams Bridge is an important road link between the northern and southern districts of Rotterdam. Its unrestricted and safe use was also to be ensured during the scaffolding operations and renovation work.
