Flexible girder wall formwork, also for high-grade architectural concrete surfaces.

VARIO GT 24 木梁式墙模

久经考验的GT 24木梁模板系统，适用于任何类型的工程。

木梁式墙模所有的系统组件都可以自由选择。因此VARIO GT 24可满足任何的几何造型以及其他要求。例如穿墙拉杆的布局、可承载的最大混凝土侧压力等要求。该系统可用于工业设施建筑、民用建筑、桥墩、挡土墙，尤其适用于清水混凝土等工程项目。


技术细节

  • 高灵活性墙模系统，主要组成部分：GT 24木梁、横钢梁VSRZ / SRZ / SRU，模板板材、及其相应的模板连接组件。
  • 根据工程要求设计、组装。
  • 灵活的模块高度，由GT 24的木梁长度来确定（标准长度为0.9米至6米，以30厘米为模数；特种梁最长可至17.8米）。
  • 灵活的模块宽度，由SRZ或SRU横钢梁的长度来确定。
  • 凭借GT 24极高的抗弯强度及承载能力，减少了木梁的使用量。
  • 根据工程要求设计模板，可承受极高的混凝土侧压力。
  • 钢梁及连接板上的腰型孔100%的确保了连接部位的抗拉、抗压力学性能以及整齐、紧密的连接。
  • 广泛的适应性

    格构式木梁以及横钢梁的多样化组合保证了系统的安全性。

  • 特别适用于清水混凝土

    可以完全根据建筑设计的要求，布置拉杆与模板接缝的位置。



  • 没有尺寸限制的补模方案

    钢梁以及连接板上的腰型孔保证了模块间横平、竖直、紧密地连接。



产品图片

  • Flexible girder wall formwork, also for high-grade architectural concrete surfaces.
    VARIO GT 24系统中模板的连接灵活多变，使其可适应所有的形状和应用。

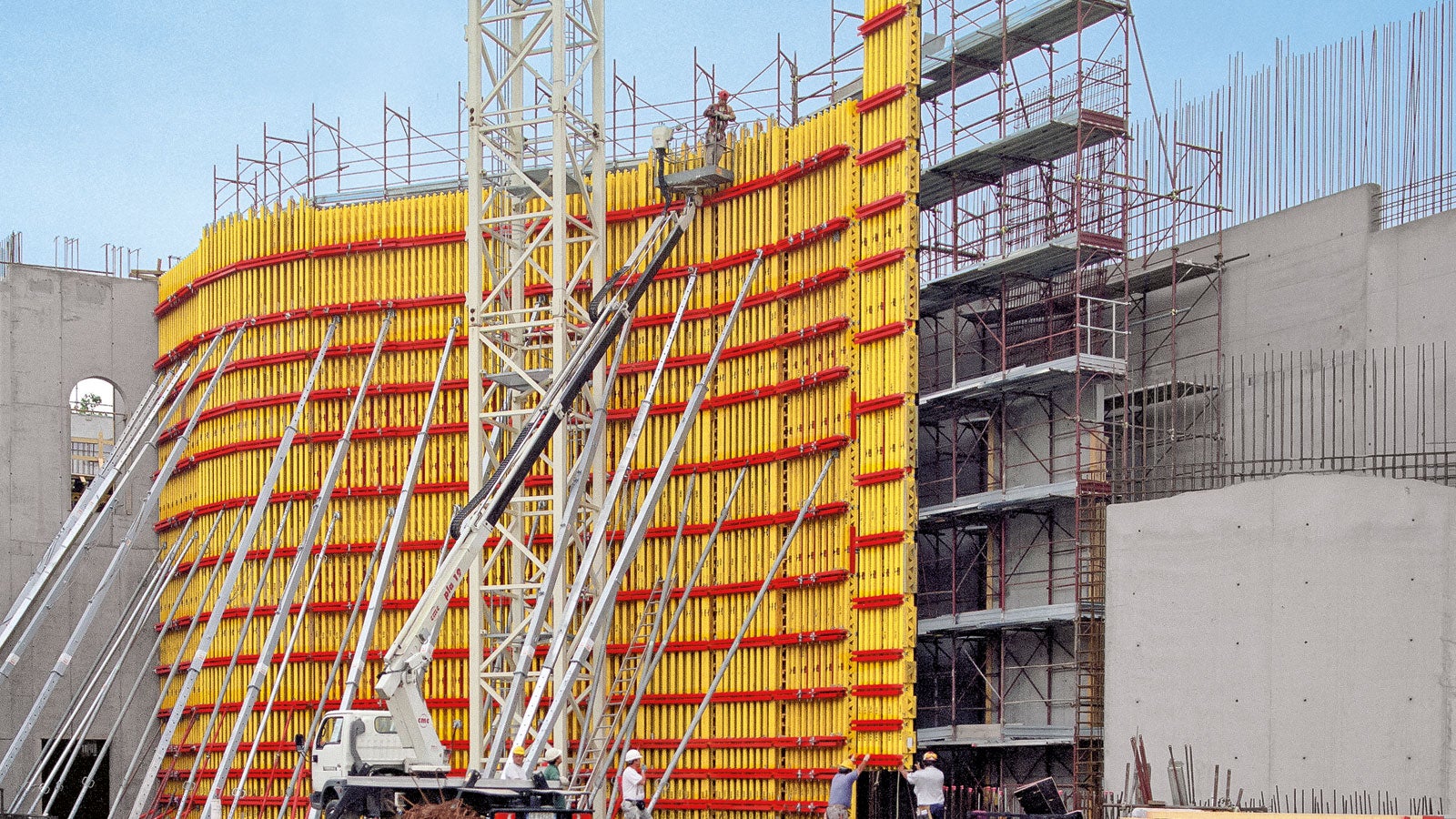

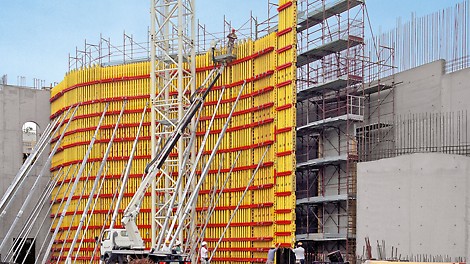

  • 14 m high VARIO elements in a polygonal arrangement. Large-sized FinPly Maxi formlining sheets ensure excellent concrete surfaces.
    14米高的VARIO模块，按照多边形进行排列，大面积的FinPly Maxi板材确保了顶级清水混凝土的墙面。

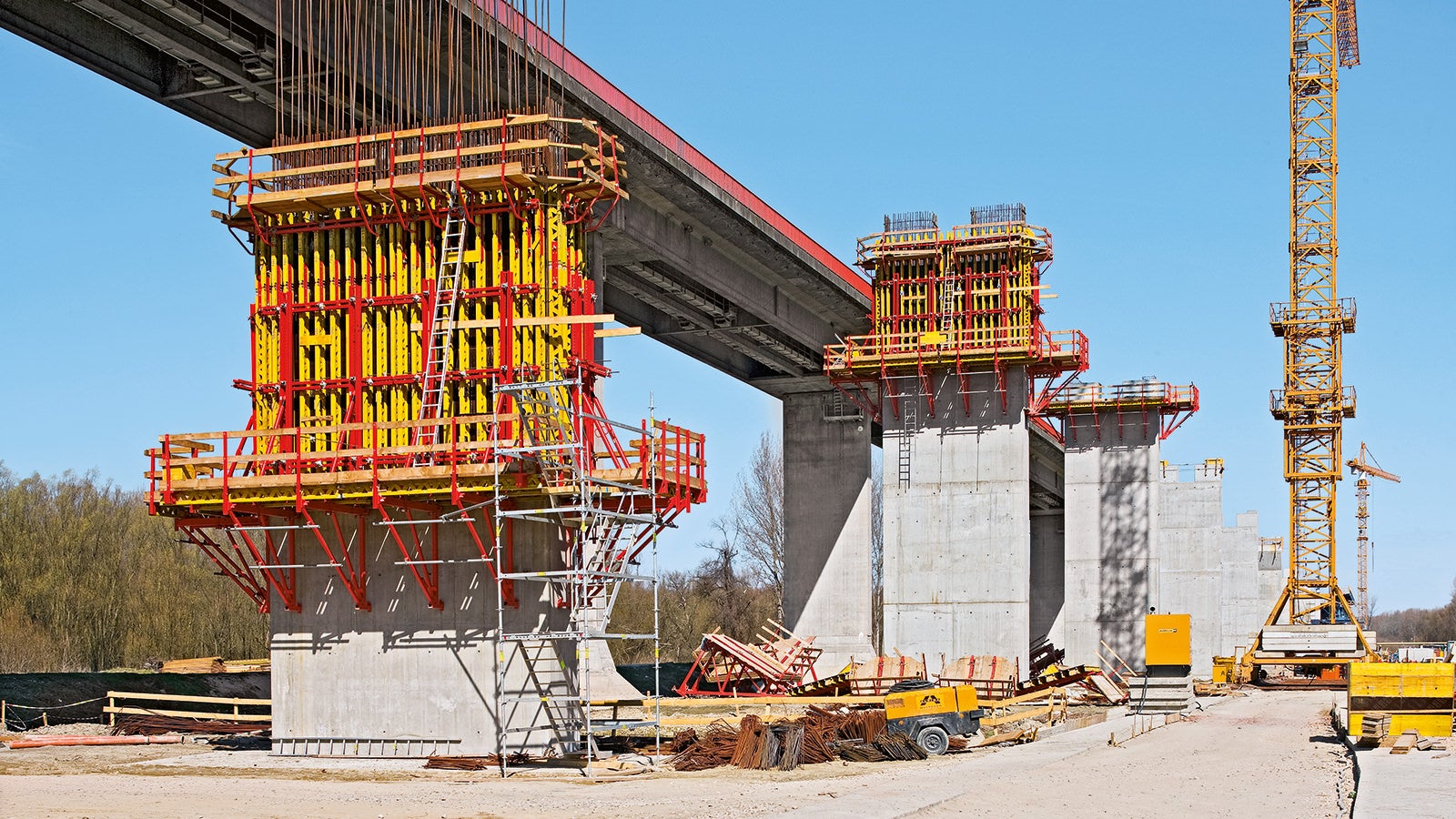

  • When forming bridge piers, the VARIO GT 24 wall formwork is frequently used on climbing brackets.
    桥墩的立模过程中，VARIO GT24墙模通常与爬架系统结合使用。

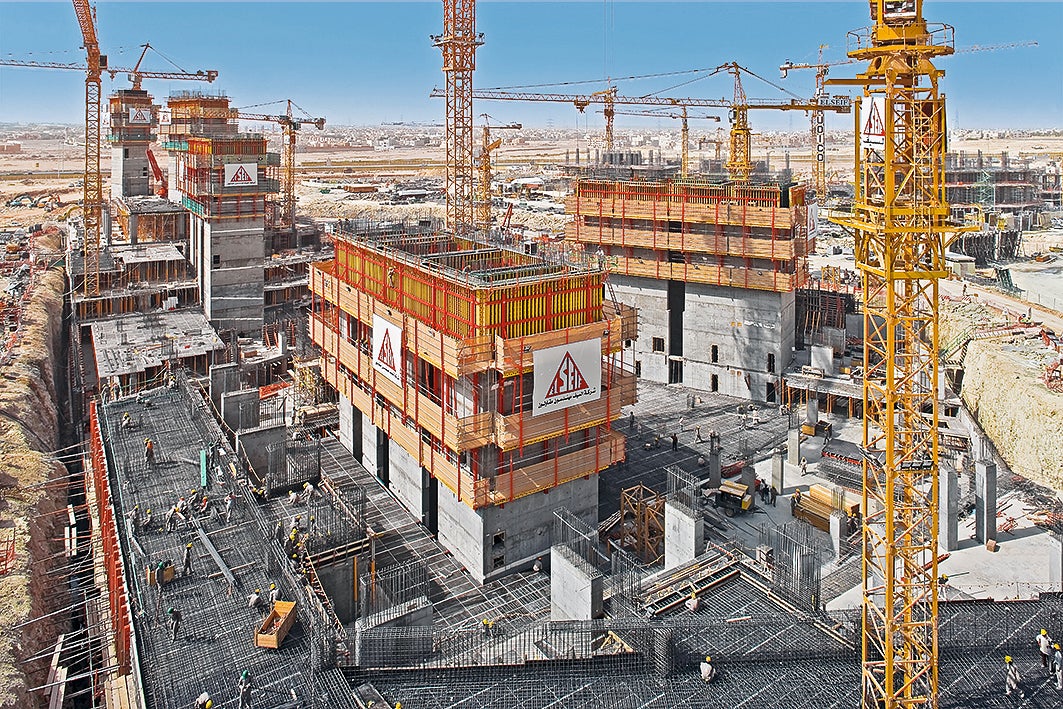

  • The girder wall formwork in combination with the RCS Rail Climbing System for the construction of elevator and stairwell shafts in a high-rise building.
    VARIO GT24木梁式墙模系统与RCS导轨爬架系统结合浇筑高层项目中的电梯井和楼梯间。

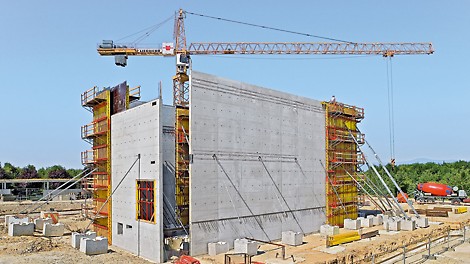

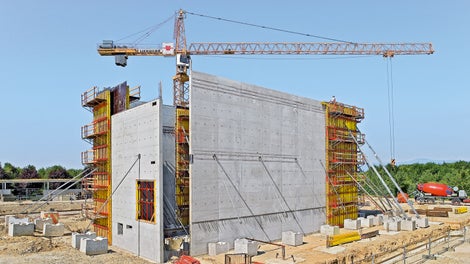

  • The VARIO GT 24 formwork with defined formlining joint formation and tie positioning was specially-designed to meet the project requirements and resulted in an excellent architectural concrete finish.
    VARIO GT 24 墙模系统尤其适合：对于混凝土表面有清晰板材接缝以及规则的拉杆布局要求的工程项目，可获得顶级的清水混凝土表面效果。

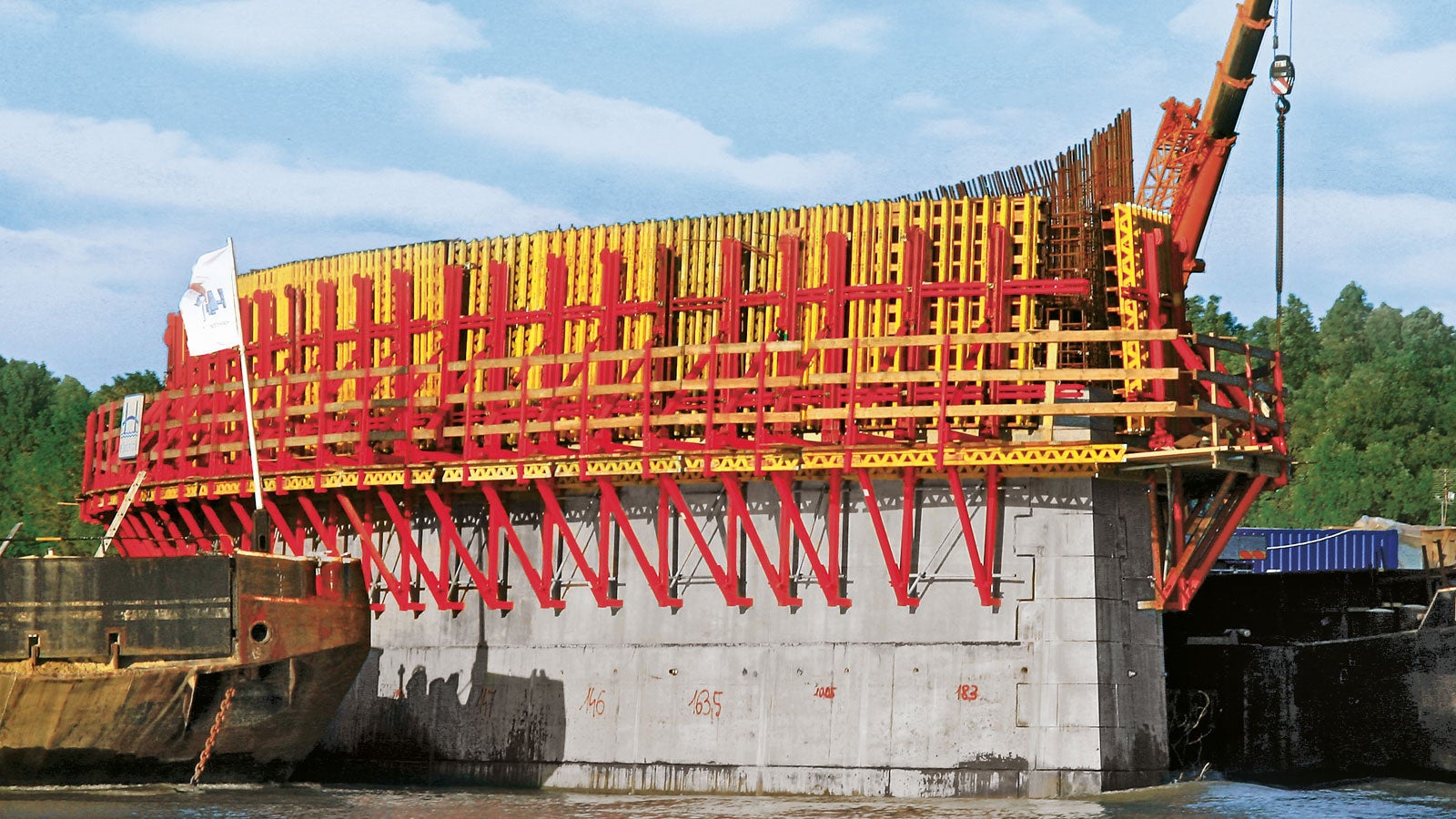

  • In addition to walls in building construction, VARIO GT 24 elements find many applications in civil engineering, e.g. for a bridge pier as shown here.
    除了应用于高层建筑中，VARIO GT 24也是市政工程的完美解决方案，例如：上图是为桥墩立模。

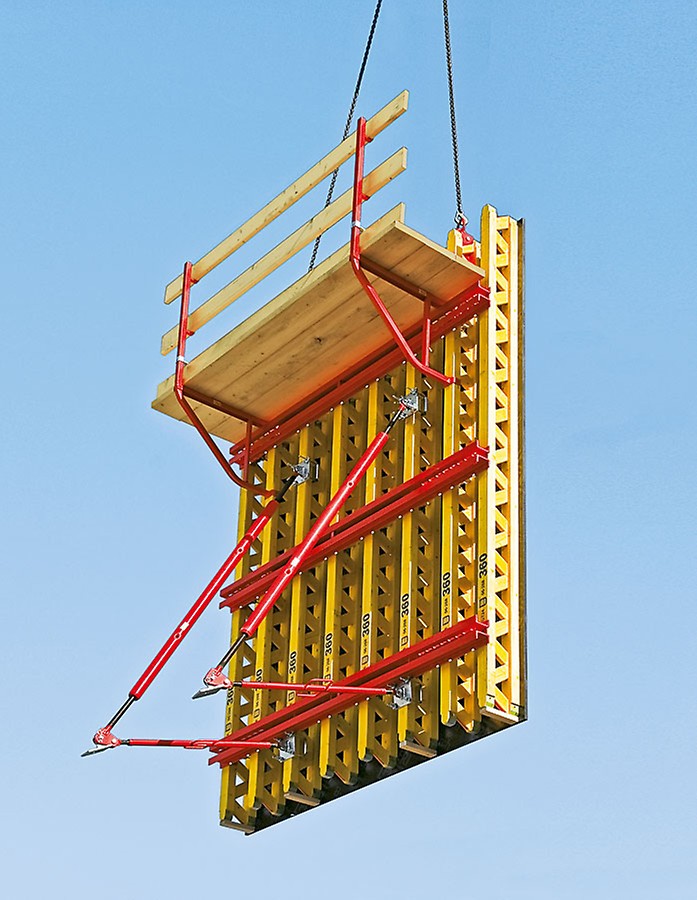

  • VARIO GT 24 standard panels are available already pre-assembled in various sizes.
    适用于工业设施和住宅项目中的桥墩或挡土墙的浇筑，可对任何平面和高度完美适应。

图片预览

Flexible girder wall formwork, also for high-grade architectural concrete surfaces.
Flexible girder wall formwork, also for high-grade architectural concrete surfaces.
14 m high VARIO elements in a polygonal arrangement. Large-sized FinPly Maxi formlining sheets ensure excellent concrete surfaces.
14 m high VARIO elements in a polygonal arrangement. Large-sized FinPly Maxi formlining sheets ensure excellent concrete surfaces.
When forming bridge piers, the VARIO GT 24 wall formwork is frequently used on climbing brackets.
When forming bridge piers, the VARIO GT 24 wall formwork is frequently used on climbing brackets.
The girder wall formwork in combination with the RCS Rail Climbing System for the construction of elevator and stairwell shafts in a high-rise building.
The girder wall formwork in combination with the RCS Rail Climbing System for the construction of elevator and stairwell shafts in a high-rise building.
The VARIO GT 24 formwork with defined formlining joint formation and tie positioning was specially-designed to meet the project requirements and resulted in an excellent architectural concrete finish.
The VARIO GT 24 formwork with defined formlining joint formation and tie positioning was specially-designed to meet the project requirements and resulted in an excellent architectural concrete finish.
In addition to walls in building construction, VARIO GT 24 elements find many applications in civil engineering, e.g. for a bridge pier as shown here.
In addition to walls in building construction, VARIO GT 24 elements find many applications in civil engineering, e.g. for a bridge pier as shown here.
VARIO GT 24 standard panels are available already pre-assembled in various sizes.
VARIO GT 24 standard panels are available already pre-assembled in various sizes.
VARIO GT 24系统中模板的连接灵活多变，使其可适应所有的形状和应用。
14米高的VARIO模块，按照多边形进行排列，大面积的FinPly Maxi板材确保了顶级清水混凝土的墙面。
桥墩的立模过程中，VARIO GT24墙模通常与爬架系统结合使用。
VARIO GT24木梁式墙模系统与RCS导轨爬架系统结合浇筑高层项目中的电梯井和楼梯间。
VARIO GT 24 墙模系统尤其适合：对于混凝土表面有清晰板材接缝以及规则的拉杆布局要求的工程项目，可获得顶级的清水混凝土表面效果。
除了应用于高层建筑中，VARIO GT 24也是市政工程的完美解决方案，例如：上图是为桥墩立模。
适用于工业设施和住宅项目中的桥墩或挡土墙的浇筑，可对任何平面和高度完美适应。
