For wide-span working platforms and temporary pedestrian footbridges

PERI UP Flex 操作平台 LGS 150

适用于大跨度的操作平台，以及搭建临时的人行天桥。

LSG 桁架系统为大跨度或高荷载的建筑项目提供安全、快速的工程解决方案。除了作为气候防护顶棚外，LGS还可用于搭建临时的人行通道，天桥，或任意高度上的施工平台。


技术细节

  • 适用于大跨度结构或人行天桥的桁架梁。
  • 最大跨度: 12,00 米 （最大允许荷载为5 kN/m²）或 20,00 米（最大允许荷载为2 kN/m²）



  • 快速安装

    使用横杆和对角撑杆组装成高承载能力的单元。



  • 适用于大跨度

    极高地抗弯强度可适用于较大跨度的项目。



  • 灵活性

    可根据结构需要灵活应用- 作为平台或桥梁。

产品图片

  • For wide-span working platforms and temporary pedestrian footbridges
    适用于大跨度的作业平台以及临时的人行天桥。

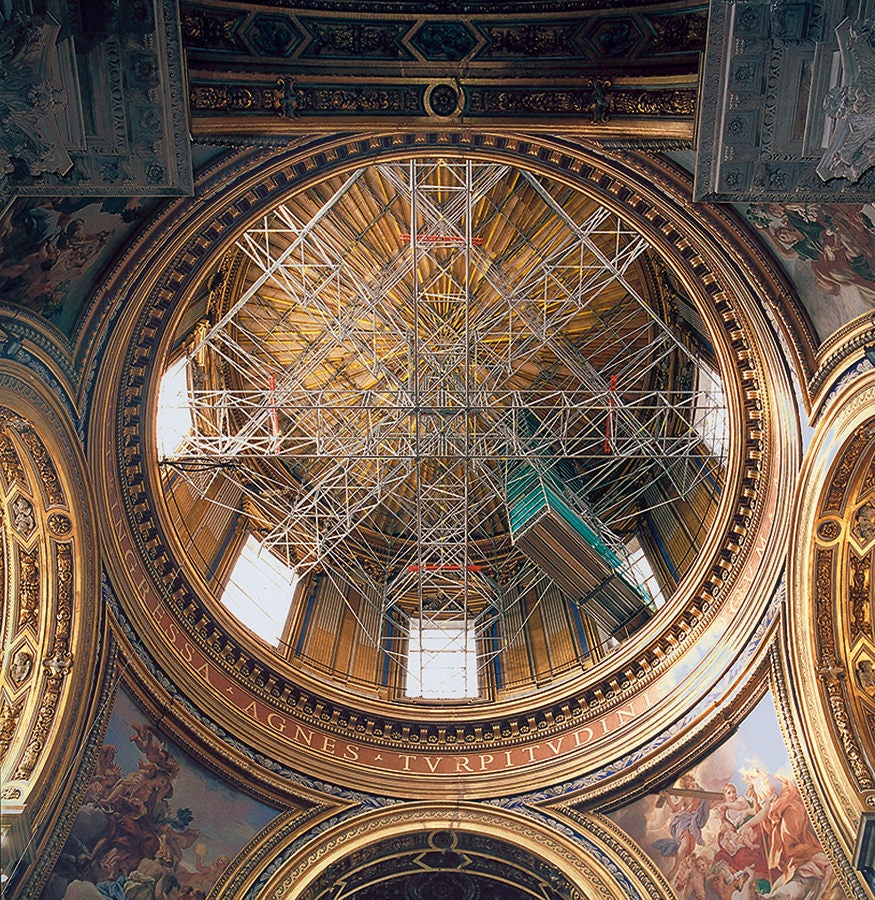

  • With the LGS Lattice Girder System, safe working platforms can be realized. If required, completely close areas can be formed with system decking and dust-proof coverings.
    桁架横梁系统架设安全的作业平台。如果需要可使用系统的踏脚板以及防尘布封闭工作面。

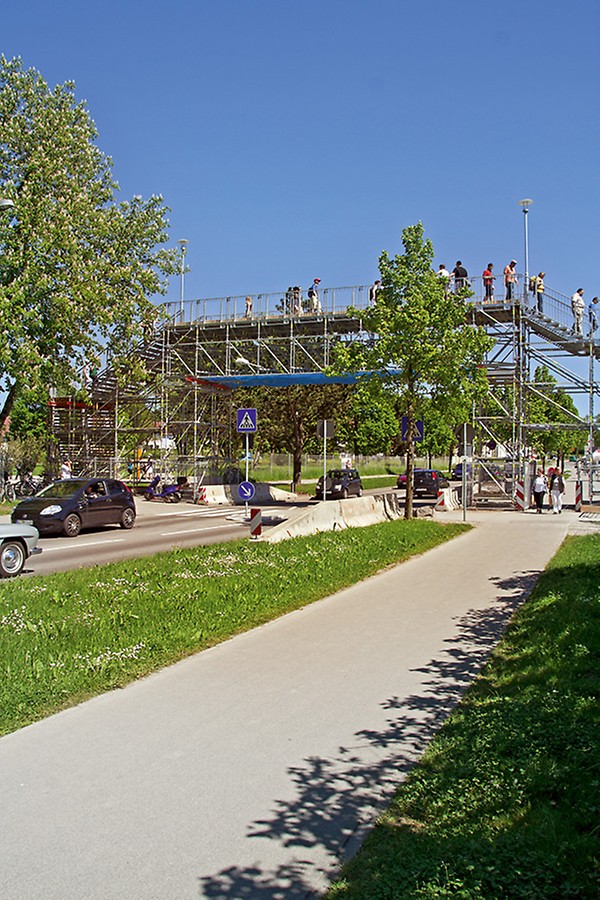

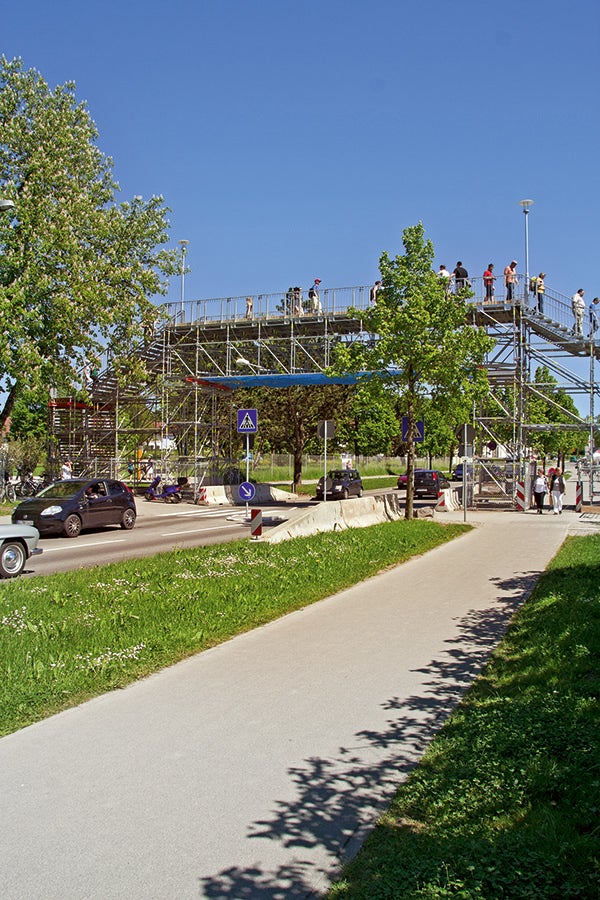

  • LGS is suitable for temporary pedestrian bridges and meets the requirements regarding guardrail loads and geometries for use in public areas.
    LGS适用于临时的人行天桥，满足公共区域对防护栏及构造的要求

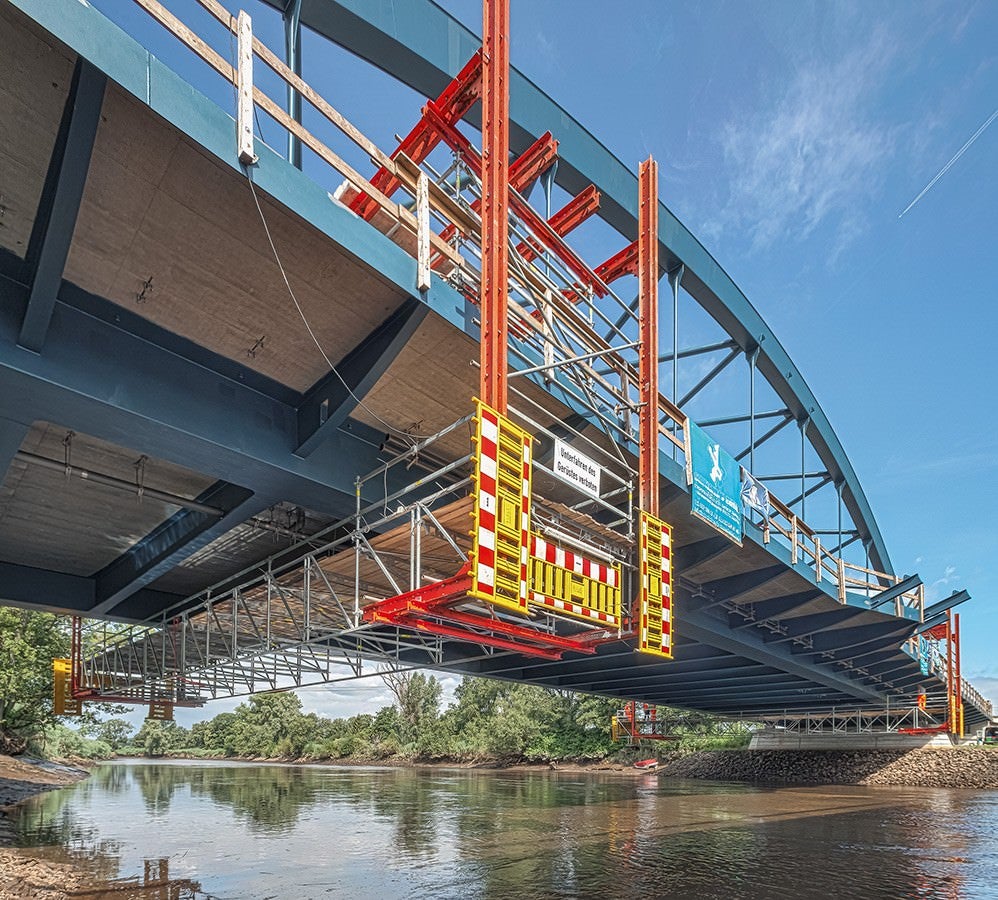

  • This manually movable scaffolding with its 20 m span is based on the LGS system and, among other things, serves as a working platform for implementing corrosion protection measures.
    上图是利用LGS系统安装的可以移动的脚手架，跨度20米，为桥梁进行防腐蚀处理施等工作提供作业平台。

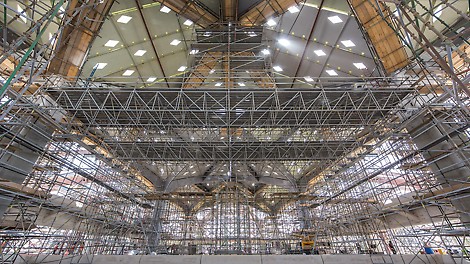

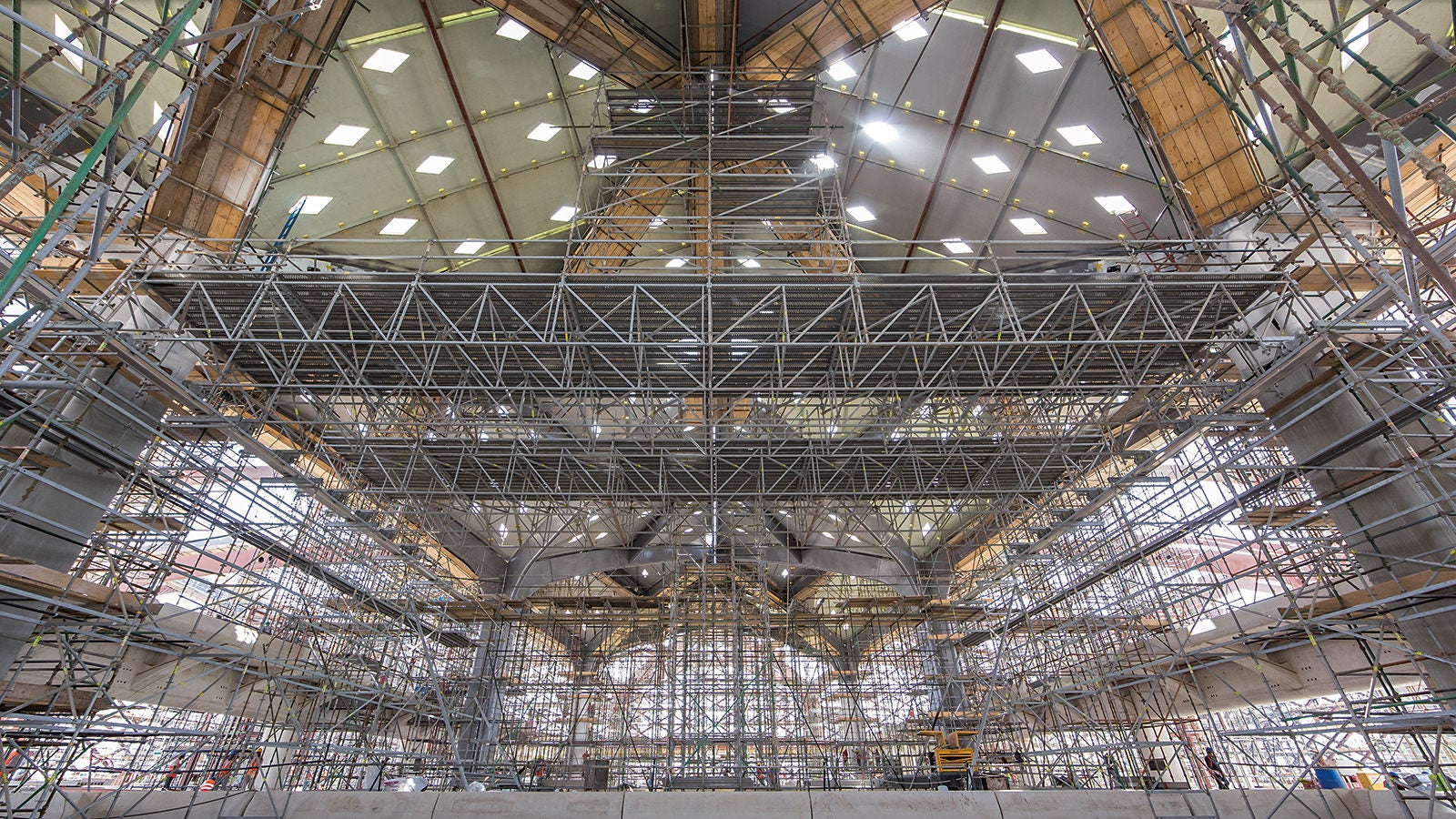

  • Movable platforms with 25 m spans provide safe working areas for different tasks to be carried out on the the underside of a railway station roof.
    上图为一个火车站顶棚施工工地，跨度为25米的可移动平台为不同的施工作业提供了安全作业平面。

图片预览

For wide-span working platforms and temporary pedestrian footbridges
For wide-span working platforms and temporary pedestrian footbridges
With the LGS Lattice Girder System, safe working platforms can be realized. If required, completely close areas can be formed with system decking and dust-proof coverings.
With the LGS Lattice Girder System, safe working platforms can be realized. If required, completely close areas can be formed with system decking and dust-proof coverings.
LGS is suitable for temporary pedestrian bridges and meets the requirements regarding guardrail loads and geometries for use in public areas.
LGS is suitable for temporary pedestrian bridges and meets the requirements regarding guardrail loads and geometries for use in public areas.
This manually movable scaffolding with its 20 m span is based on the LGS system and, among other things, serves as a working platform for implementing corrosion protection measures.
This manually movable scaffolding with its 20 m span is based on the LGS system and, among other things, serves as a working platform for implementing corrosion protection measures.
Movable platforms with 25 m spans provide safe working areas for different tasks to be carried out on the the underside of a railway station roof.
Movable platforms with 25 m spans provide safe working areas for different tasks to be carried out on the the underside of a railway station roof.
适用于大跨度的作业平台以及临时的人行天桥。
桁架横梁系统架设安全的作业平台。如果需要可使用系统的踏脚板以及防尘布封闭工作面。
LGS适用于临时的人行天桥，满足公共区域对防护栏及构造的要求
上图是利用LGS系统安装的可以移动的脚手架，跨度20米，为桥梁进行防腐蚀处理施等工作提供作业平台。
上图为一个火车站顶棚施工工地，跨度为25米的可移动平台为不同的施工作业提供了安全作业平面。
